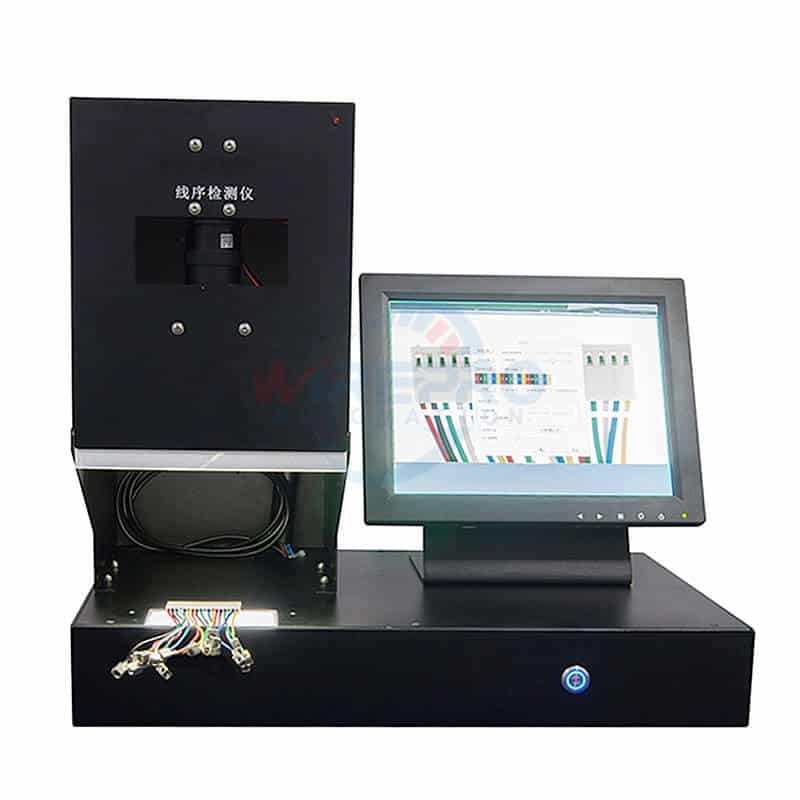

The wiring harness in the terminal connector usually needs to be arranged according to a certain color sequence, manual inspection often causes misdiagnosis or missed inspection due to eye fatigue. The wire sequence inspecting device adopts vision technology and intelligent algorithms to determine compliance with preset standards, automatically identify the color of the harness and mark the output, so as to make sure the wiring sequence is 100% correct.

1. Connectivity testing and marking functions are optional.
2. You can place the connector front or backside in the detecting area freely, and there is no need to limit the product position, the wire color sequence detector can identify it automatically.
3. After the wire is placed in the area to be tested, the machine automatically starts to recognize without touching any switch, it takes only 0.2 seconds to get the result.

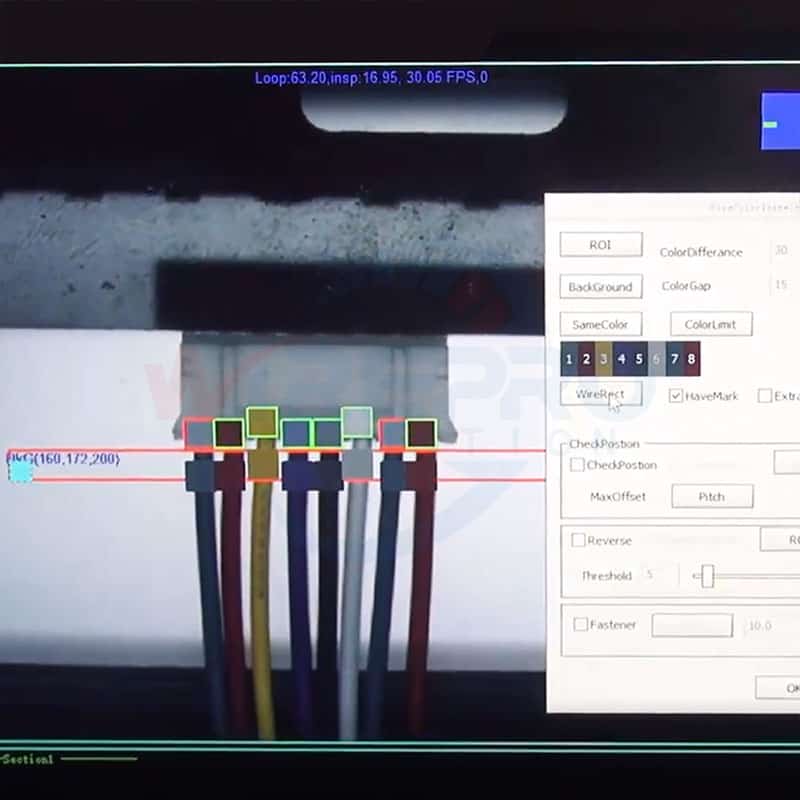

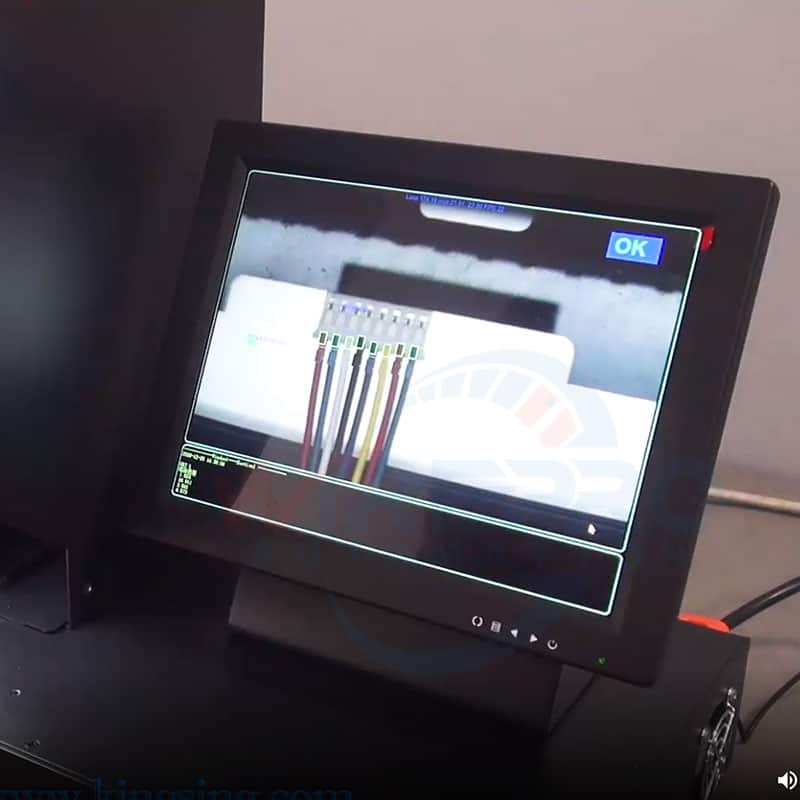

4. Automatically identify the color sequence of each wire, automatically judge whether the wire terminal hole is inserted incorrectly or in place; automatically display the wrong sequence wire position, and give an audible alarm
5. Super anti-interference ability, wire surface printed with character or color ring does not affect the testing.
