Model: HT-S06
The portable terminal section analyzer is a precision detection and analysis equipment specially developed by our company for the quality inspection of the wire harness industry.

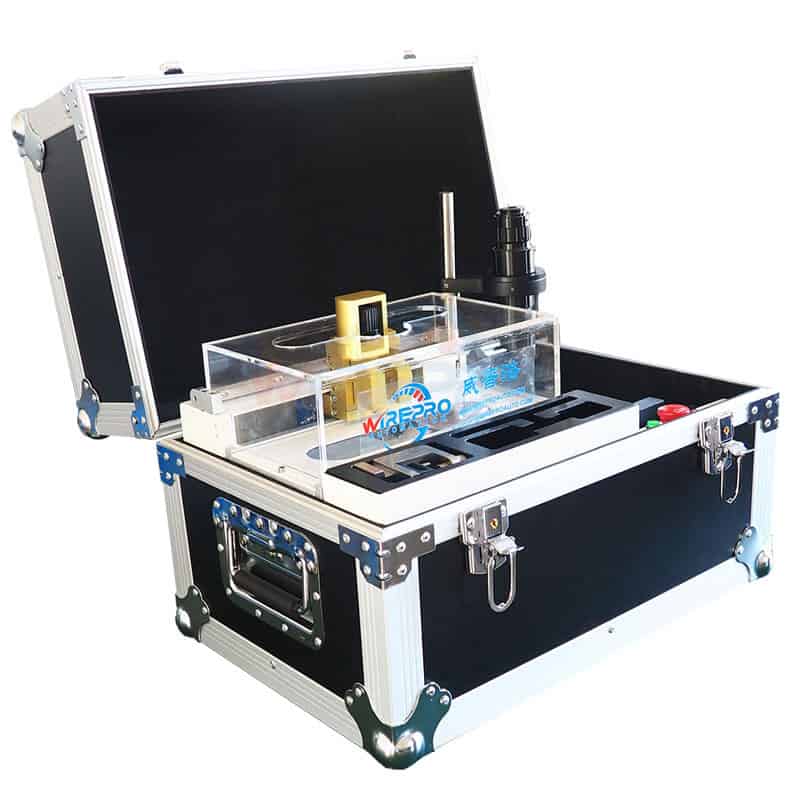

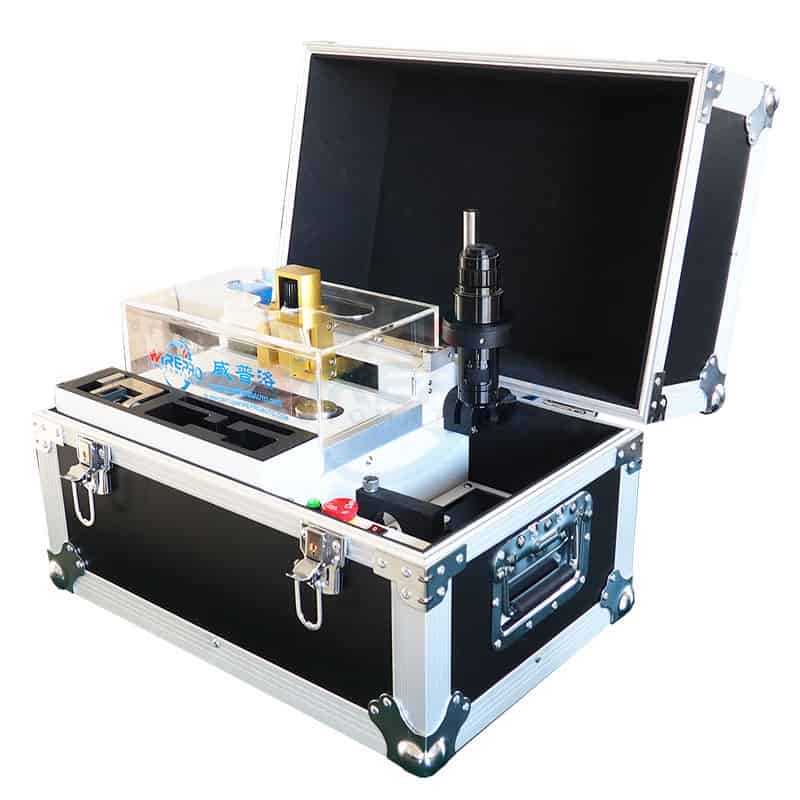

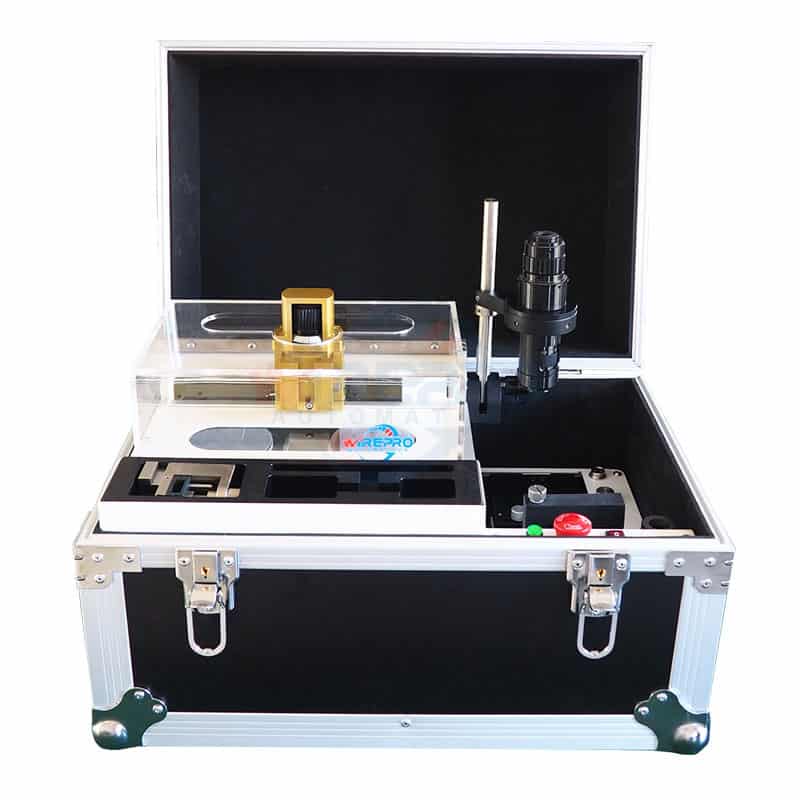

HT-S06 Small size portable terminal section analyzer
Description

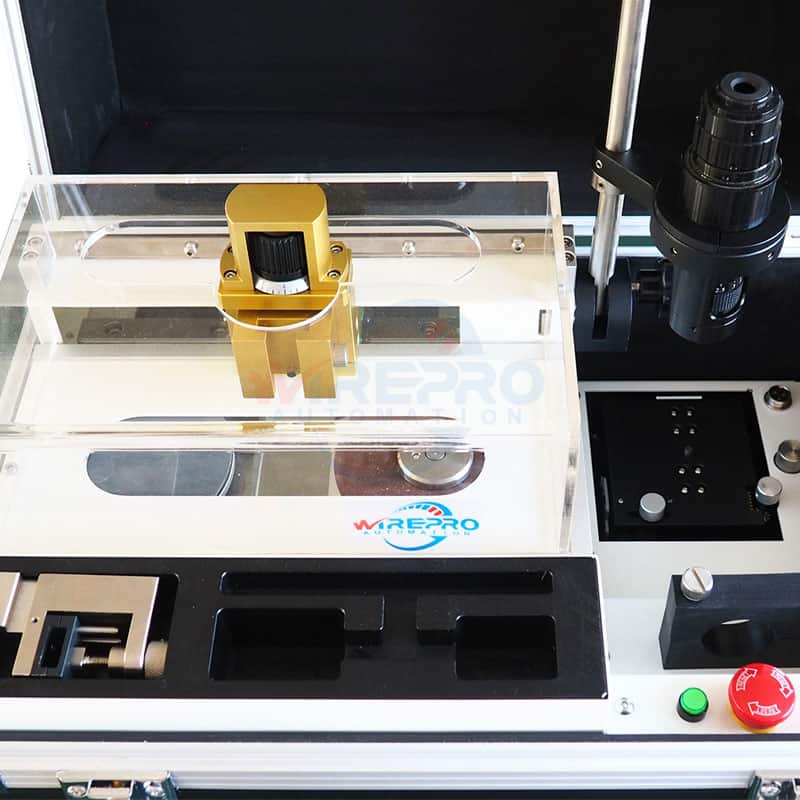

The portable terminal section analyzer is a precision detection and analysis equipment specially developed by our company for the quality inspection of the wire harness industry. The whole system consists of automatic terminal cutting equipment, grinding equipment, corrosion cleaning section image acquisition system, wire harness terminal picture measurement, and analysis system, etc.
The unit is composed of ergonomic design and modular combination, which makes the operation more convenient and faster. The complete inspection system can complete the processing analysis of one terminal in 5 minutes, which greatly improves the speed of the quality inspection of the terminal section. Easy operation, high-quality image acquisition system, accurate measurement analysis to protect your production.
Portable terminal section analyzer video
Technical Data
| Model | HT-S06 |
| Applivable wire range | 0.13~8mm2 |
| Cutting speed | 2800 rpm/min |
| Cut disk | Φ150X0.5mm |
| Abrasive paper for metallographic | 1200# |
| Precision | 0.001mm |
| Terminal corrosion | Liquid cleaning |
| Lighting source | All white adjustable LED lighting device |
| Power supply | 220V |
| Power | 180W |
| Weight | About 30kgs |
| Dimensions | 45*33*30cm |
Application
