Model: CB-M05-B
The CB-M05 is designed for thin metal corrugated tubes and other materials with thin steel.

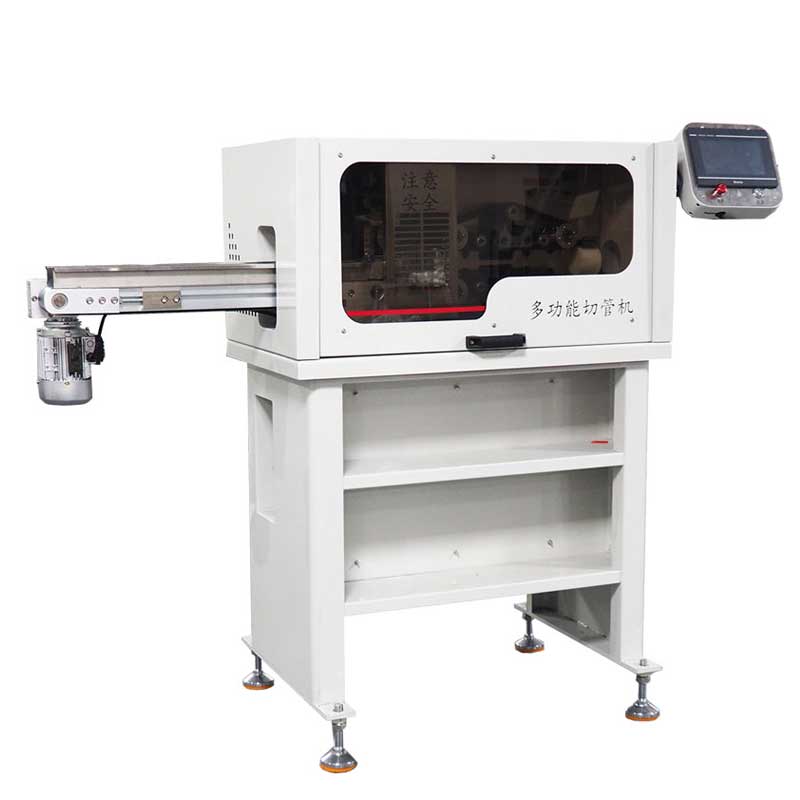

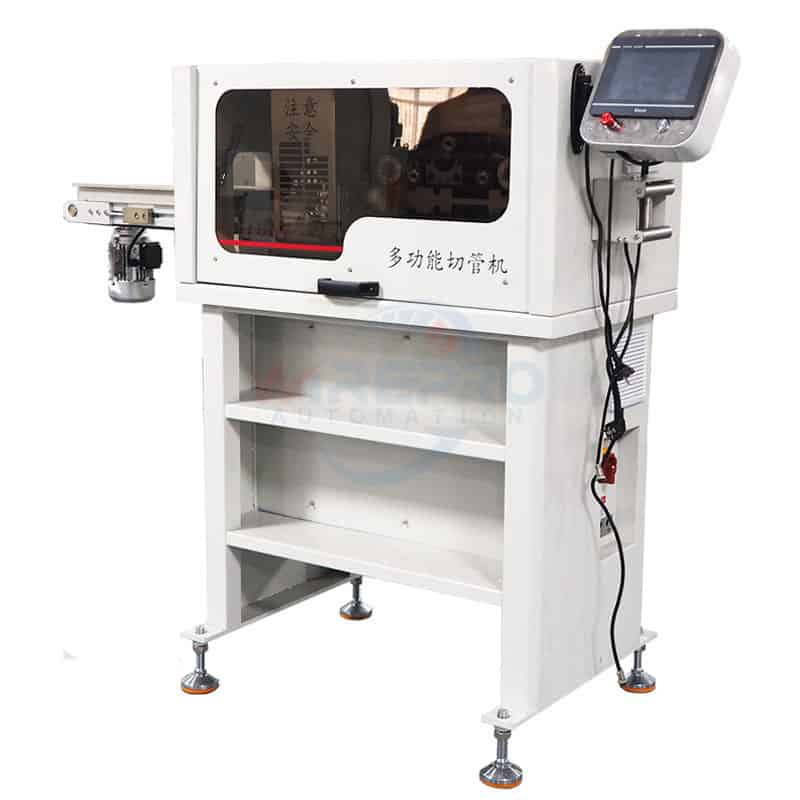

CB-M05-B Automatic thin wall metal bellows tube cutting machine
Description
The CB-M05B is a heavy-duty cutting machine for thin metal corrugated tubes and similar thin steel materials. It uses a high-power rotary knife, wear-resistant cutting tooling, and stepless feeding to process 1–30 mm tubes, with custom versions available up to 45 mm.
The CB-M05B is designed for precise cut-to-length processing of thin metal corrugated tubes, thin steel tubes, and similar metal materials. Touchscreen parameter setting, grouped cutting programs, batch quantity setting, and safety guard functions.
Key Features:

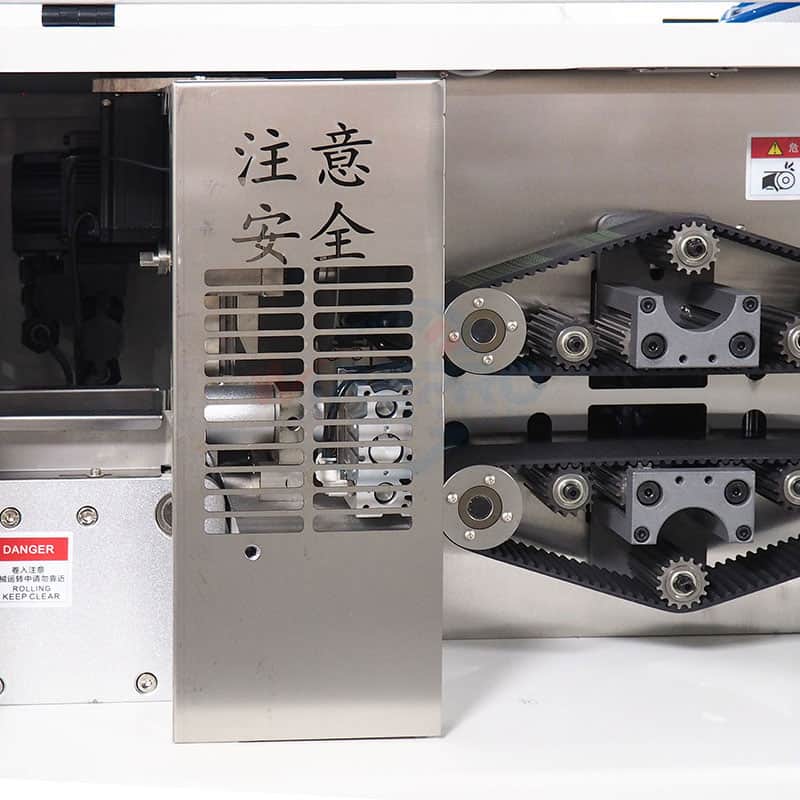

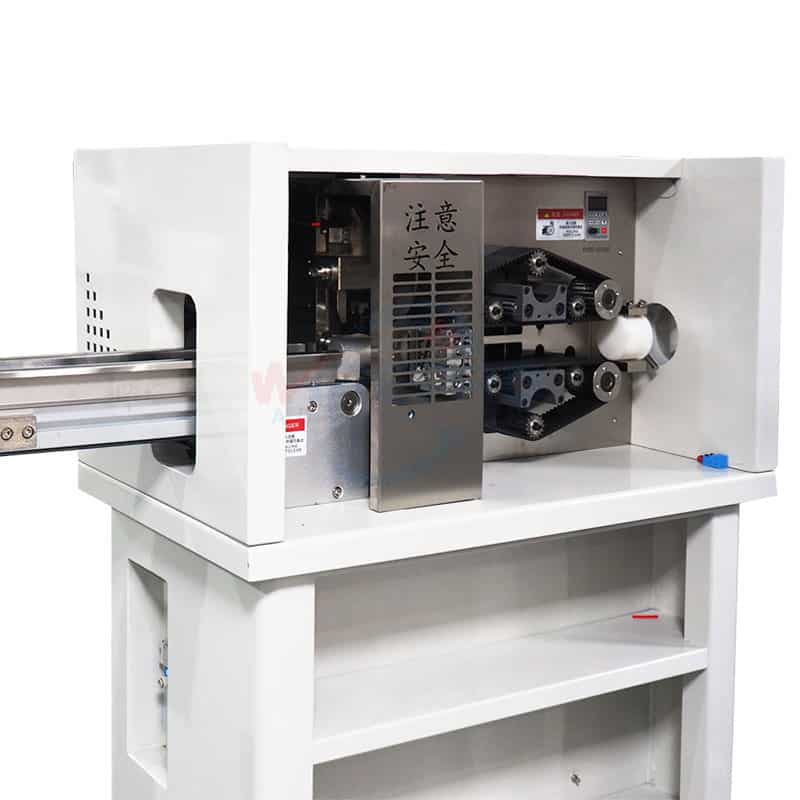

High-Power Rotary Knife: Provides stable cutting performance for thin metal corrugated tubes and thin steel materials.
Wear-Resistant Cutting Tooling: The specially designed cutting tool supports durable operation in metal tube processing.
Touchscreen Control: Cutting length, quantity, batch settings, and production parameters can be set directly on the touchscreen.
Grouped Cutting Programs: Different cutting lengths and quantities can be programmed within one group.
Custom Processing Range: The standard processing range is 1–30 mm, with custom versions available up to 45 mm.
CB-M05 Metal tube cutting machine:
Technical Data
| Model | CB-M05B |
| Materials | For thin metal tube and so on |
| Feature | Higher power and rotating knife |
| Available Diameter | 1 – 30 mm (custom available Max 45 mm) |
| Cutting Length | 0.1 – 99999 mm |
| Cutting Length Tolerance | ± 0.5 mm |
| Cutting Speed | 20 – 60 pcs/min |
| Power | 220/110 V |
| Air Connection | 0.5 – 0.7 MPa |
| Power | 2000 W |
| Dimensions | 102 × 53 × 130 cm |
| Weight | 250 kg |
Application
Cutting thin metal corrugated tubes thin-wall metal bellows metallic nylon tube and so on.
