Model: HB-MA2
Discover the HB-MA2 automatic winding machine. It automatically winds wire neatly, cuts to length, ties the coil, and ejects it into a box.

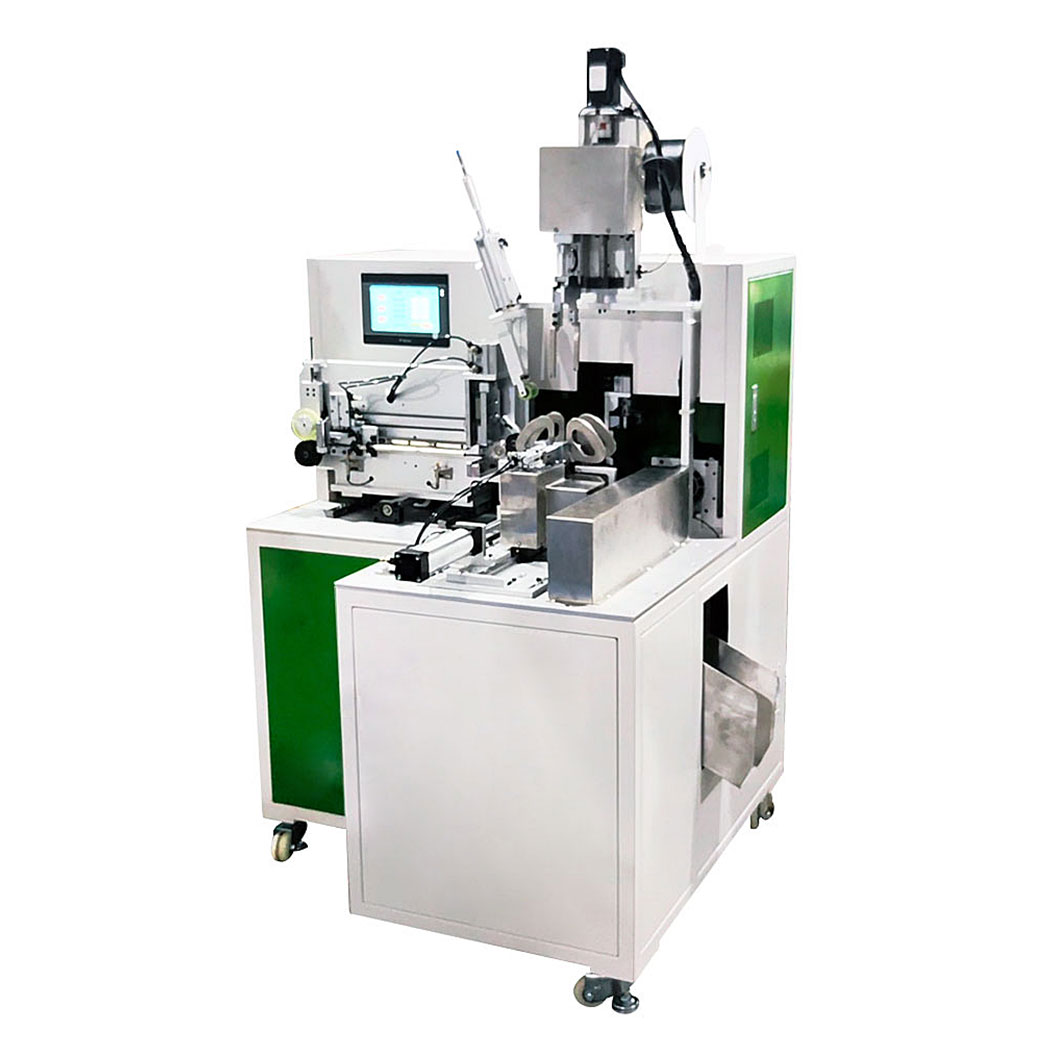

HB-MA2 Fully Automatic Wire Tube Coil Winding Cuting and Tying Machine
Descripción
HB-MA2 Fully Automatic Coil Winding and Tying Machine: From Wire to Finished Coil, Fully Automated
Streamline your wire processing with the HB-MA2, a heavy-duty automatic winding and bundling machine designed for high-volume production. Unlike simple winders, the HB-MA2 manages the entire finishing process: it winds the wire neatly, cuts it automatically, ties it securely, and ejects the finished product—all without operator intervention.
Complete Automation Workflow:
Precision Winding: The machine automatically winds wire into neat, neatly arranged coils with adjustable speed and tension.
Automatic Cutting: Once the preset length is reached, the machine automatically cuts the wire cleanly.
Secure Tying: Immediately after cutting, the machine automatically ties the coil to prevent unraveling.
Automatic Ejection: The finished, tied coil is then automatically released from the winding head and ejected into a waiting container or basket.
Boost Efficiency with Unattended Operation, drastically reducing labor costs and increasing throughput.
Datos técnicos
| Modelo | HB-MA2 |
| Function | Fully automatic winding, tying, and colier collecting. Supprt unattended operation when work with a unwinder. |
| Available Wire Size | Φ1-10mm |
| Roller Outer Dia | ≤ 260 mm |
| Roller Inner Dia | ≥ 70 mm |
| Roller Width | ≤ 110 mm |
| Bundling Wire length | ≤380 mm (including twisted part wire length) |
| Bundling Circumference | ≤320 mm |
| Air Connection | 0.45-0.65Mpa |
| Fuente de alimentación | 110/220VAC,50/60Hz |
| Power | 400W |
| Dimensiones | 95*95*95cm |
| Peso | 230kg |
Aplicación
Wire roll, small wire spool winding
