Model:HT-H02

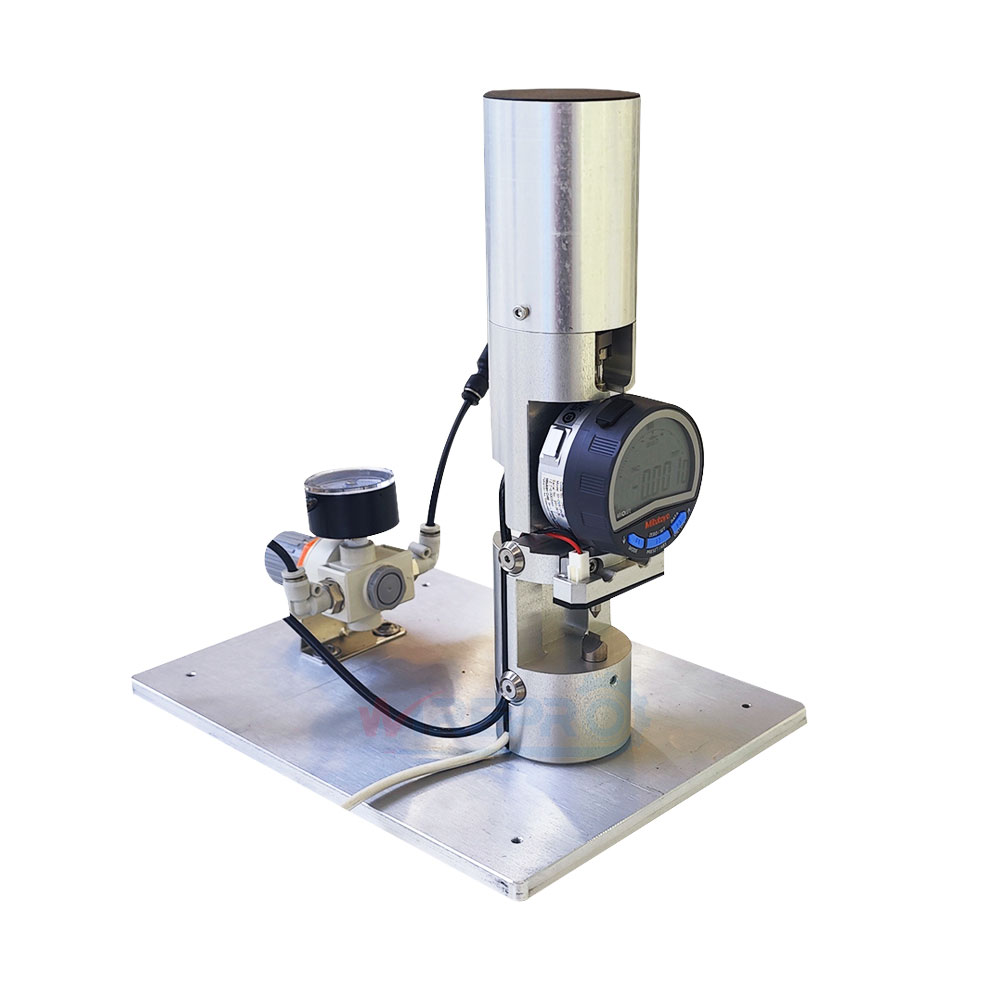

HT-H02 Crimp-Height Gage Measurement Tool is a compact, pneumatically-actuated instrument that measures the crimp height of wire-terminals.
HT-H02 Terminal Crimp Height Measuring Measurement Tool
Açıklama
HT-H02 Crimp-Height Gage Measurement Tool is a compact, pneumatically-actuated instrument that measures the crimp height of wire-terminals with minimal operator influence.
Key capabilities
Programmable high/low limits for automatic pass/fail decisions
RS output for direct integration into measurement networks and SPC software
Features：
Footprint-saving bench-top design
Tool-free set-up and calibration
IP42-rated enclosure against dust and dripping water
One-button operation; no special skills required
Ultra-low power draw for extended service life
7,000 h continuous run-time on a single SR44 button cell

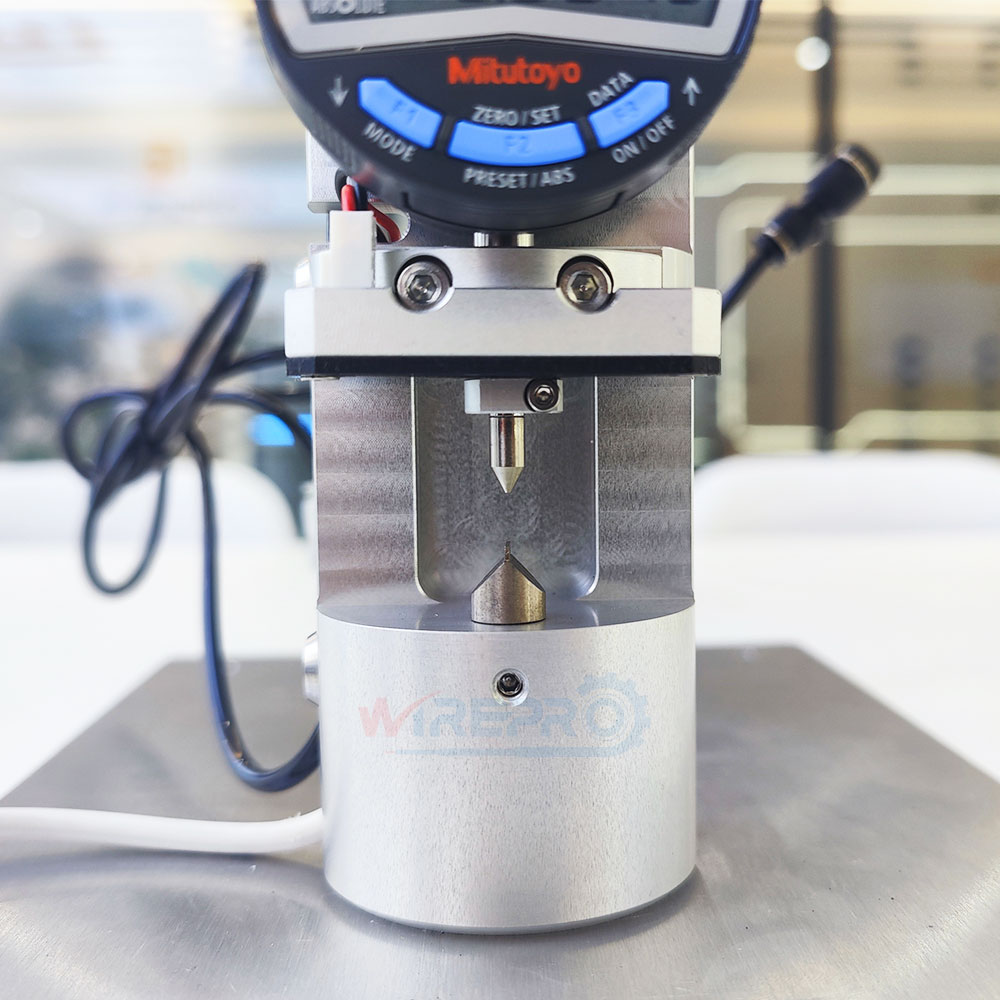

Mitutoyo ABS (absolute) sensor: origin is retained even after power loss—no re-homing needed
ABSOLUTE electrostatic capacitive linear encoder eliminates over-speed errors, boosting long-term reliability
| Model | HT-H02 |
| Measuring Range | 12.7mm |
| Resolution | 0.01mm |
| MPEe | 0.02mm |
| Measuring Force | Below 0.9N |
| Display | 6-digit LCD Display |
| Shaft Sleeve Diameter | 8mm (lsO/ls type) |
| Length Basis | ABSOLUTE electrostatic capacitive linear encoder |
| Measuring Needle | Carbide ball with M2.5*0.45 thread (lsO/ls type) |
| Battery Specification | Button type silver oxide battery SR44 (x1pc) |
| Air Pressure | 0.4 ~ 0.6Mpa (Clean, dry and stable compressed air) |
| Battery Life | About 7000 hours |
| Dust/Water Protection Grade | lP42 |
| Work Mode | Pneumatic and digital display |
| Operation Temperature | 0~40°C |
| Ağırlık | 10kG |
| Physical Dimension | 200x150x350mm |
| Note: Conforms to the relevant CE directives on machine safety and electromagneticcompatibility. | |
