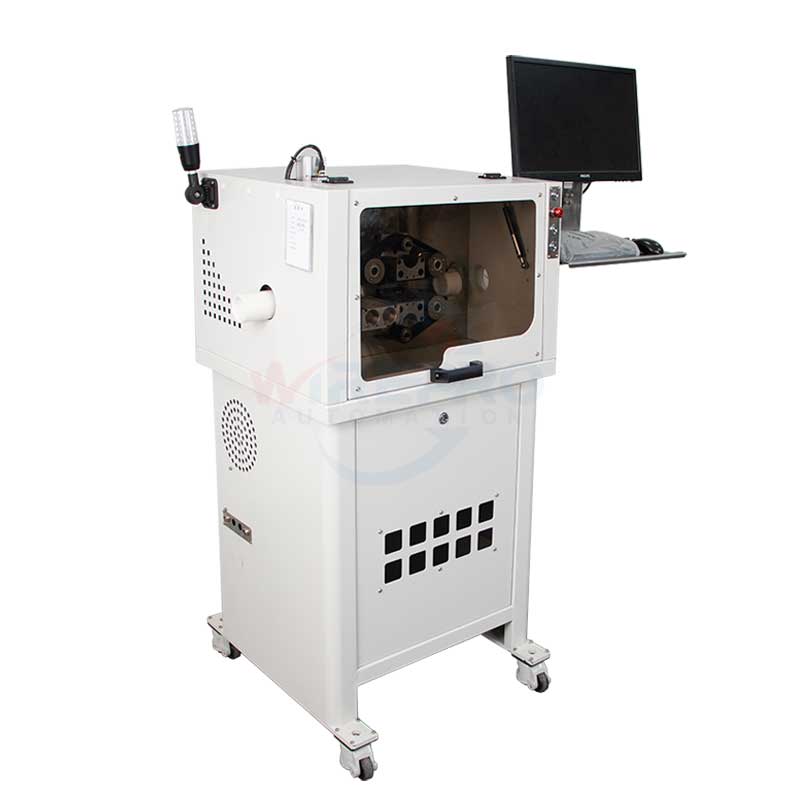

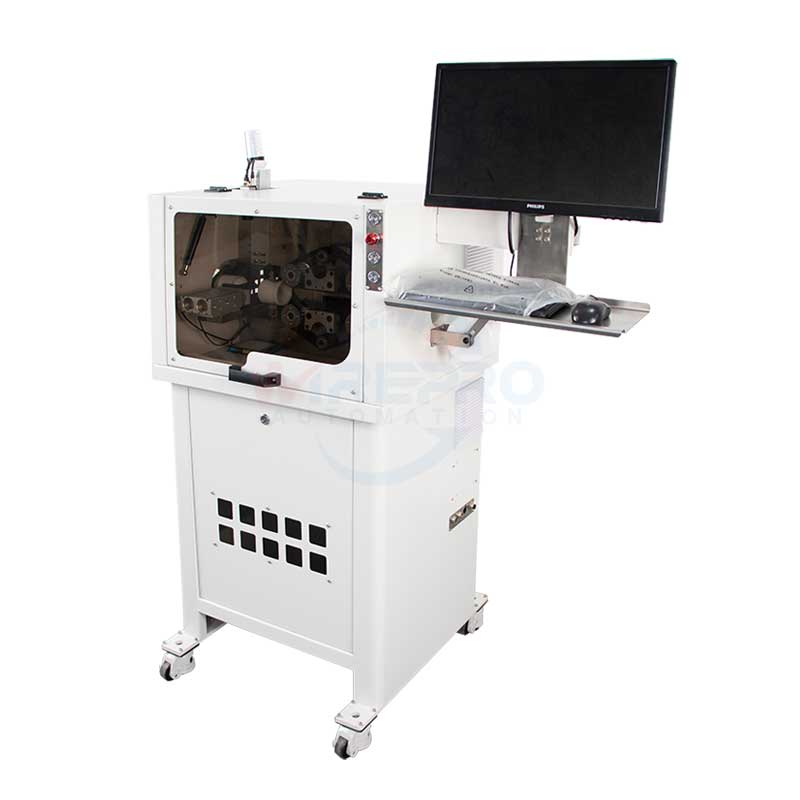

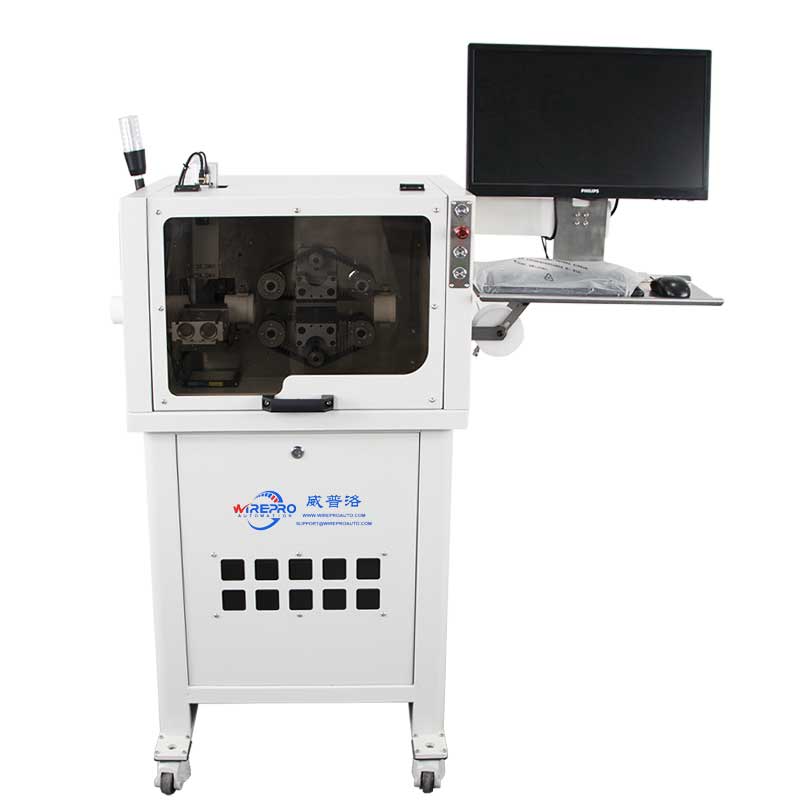

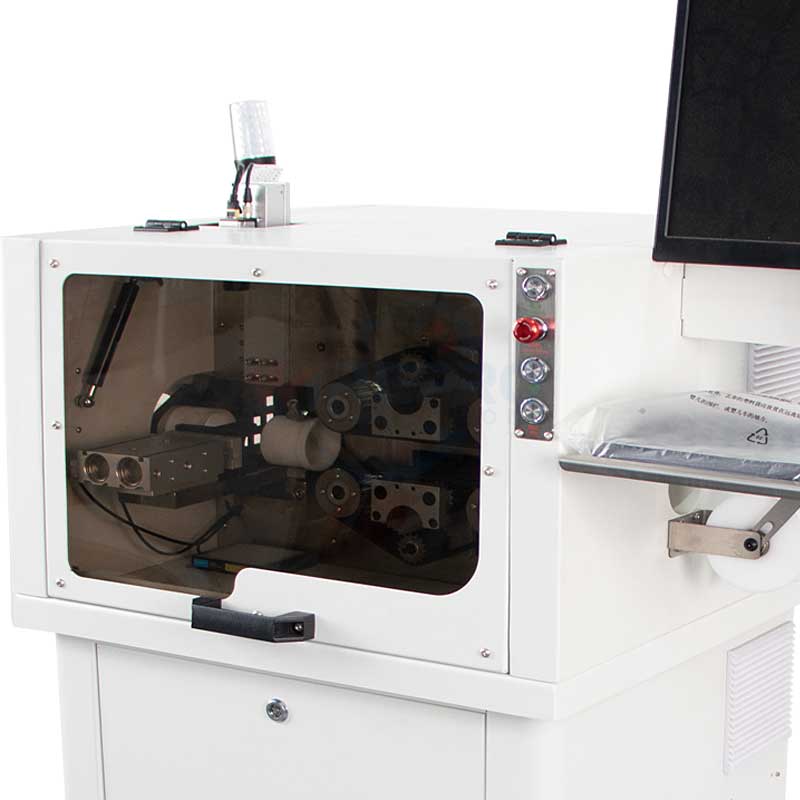

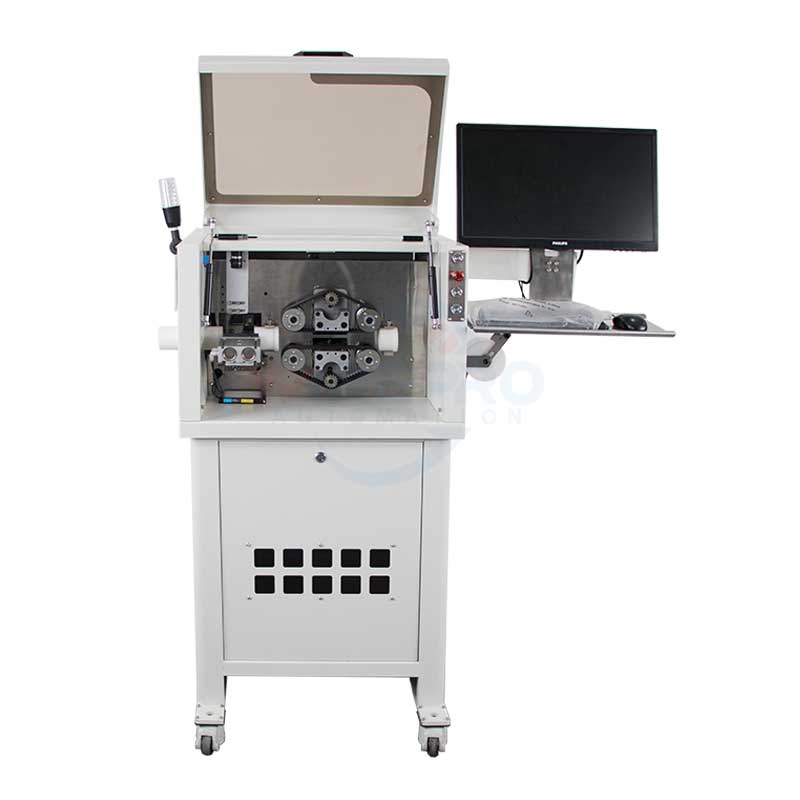

CB-V06 Visual system precision cut corrugated pipe wave peak machine

The CB-V06 is designed for precision cutting of long corrugated tubes at the wave peak or wave valley, also referred to as the corrugation crest or trough. A visual sensor system detects the cutting position before processing, supporting accurate and repeatable tube cutting.

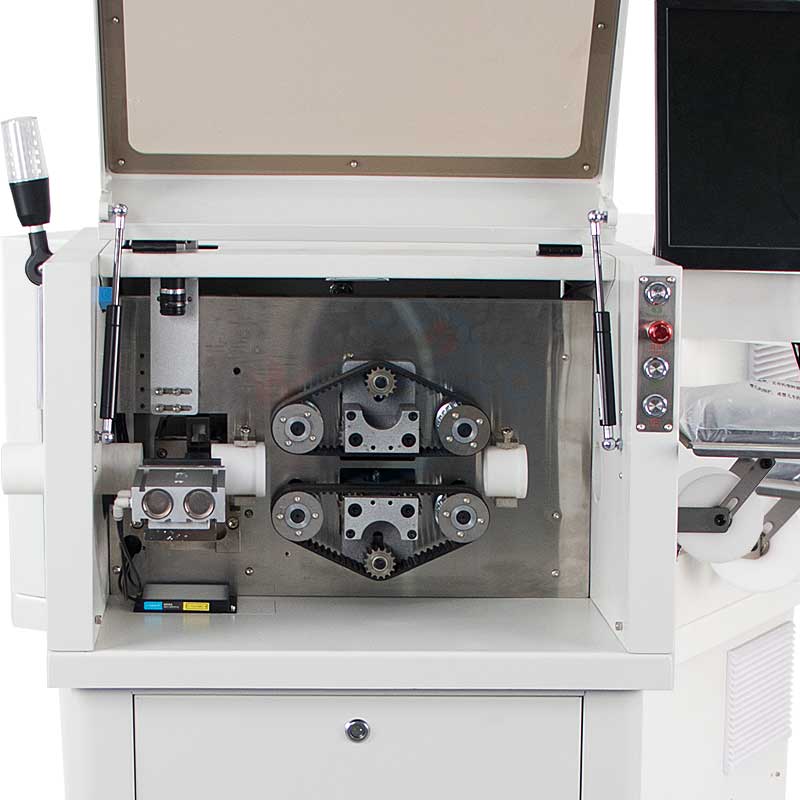

The machines use belt traction and a displacement sensor to control tube feeding. Automatic tube pre-feeding and delivery reduce manual handling and improve processing efficiency. The universal touchscreen system provides Chinese and English operation, PLC control, and digital parameter setting. A custom longitudinal splitting function is available for corrugated tube applications.

Key Features:

1. Visual Position Detection: The visual sensor system confirms the cutting position before processing.
2. Wave Peak or Wave Valley Cutting: Designed for precise cutting at the corrugated tube crest or trough, depending on the model or configuration.
3. Belt Traction and Displacement Sensor: Supports accurate tube feeding and consistent cut-to-length processing.
4. Universal Touchscreen System: Provides Chinese and English interfaces, PLC control, and digital parameter setting.
5. Integrated Control Circuit: Supports stable operation and simplifies routine maintenance.

Precision corrugated tube cutting machine :
