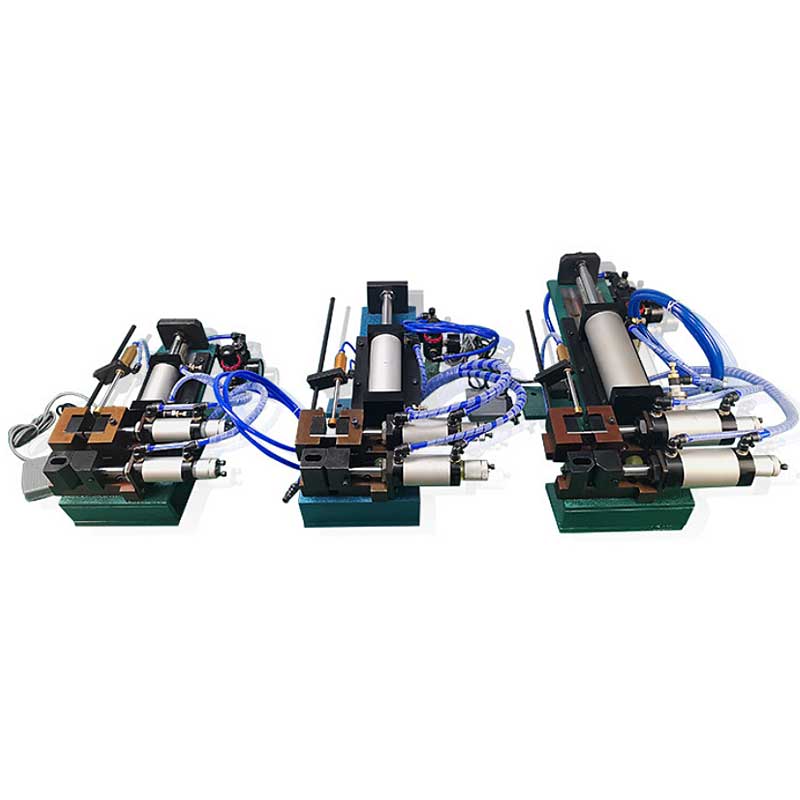

Model: SP-305 SP-310 SP-315

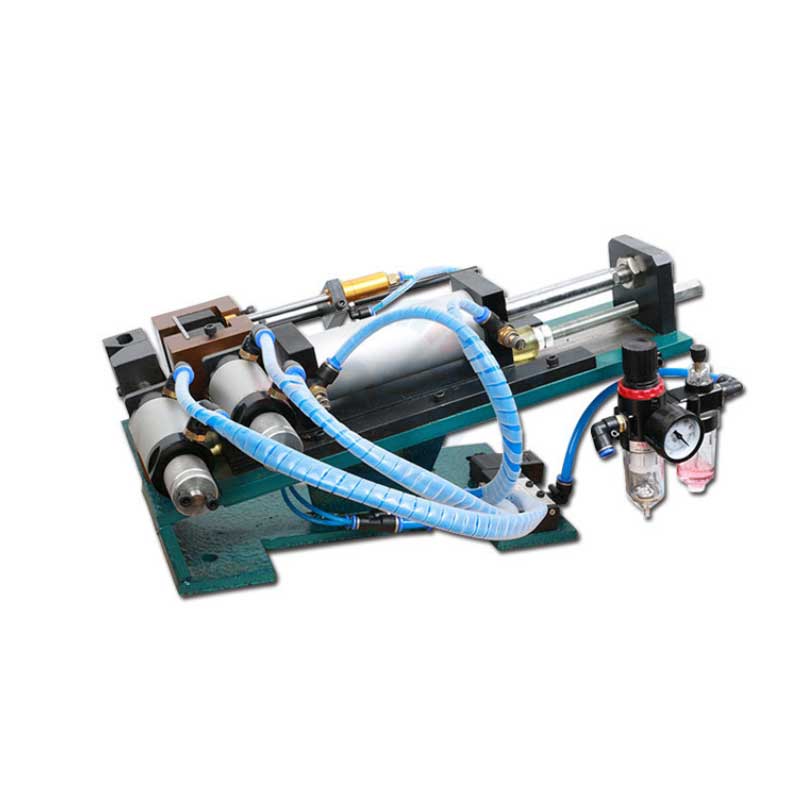

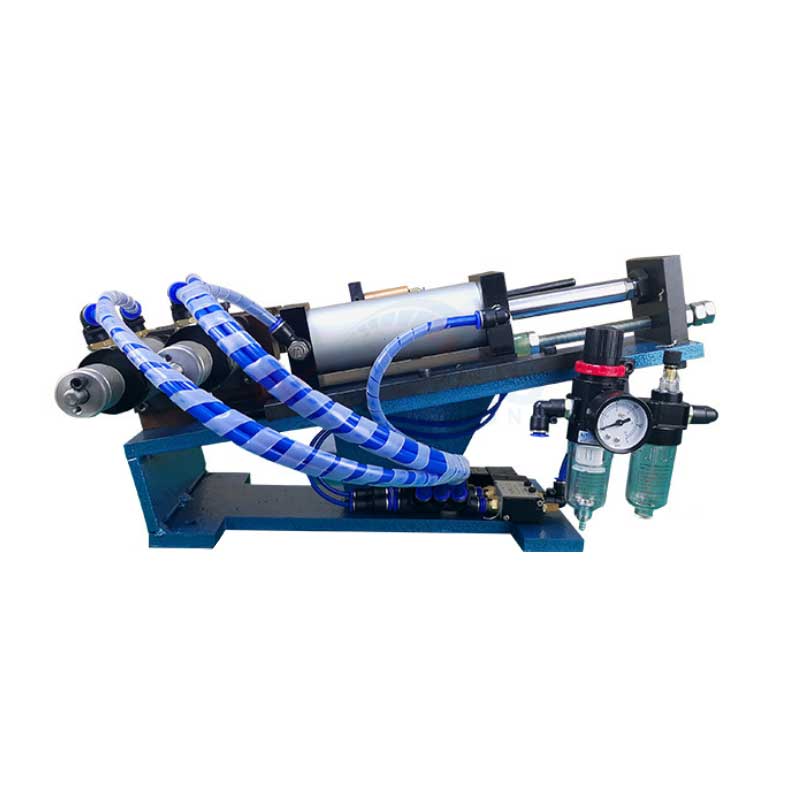

SP-305 SP-310 SP-315 pneumatic large wire stripping machine
Description
This pneumatic wire stripping machine is designed for stripping AC/DC power cords, computer wires, electronic wires, and multi-conductor cables. The blade set can be replaced to match different wire diameters and stripping requirements.
Features:
- Ergonomic Angled Design: The inclined rear structure supports comfortable operation and convenient wire positioning.

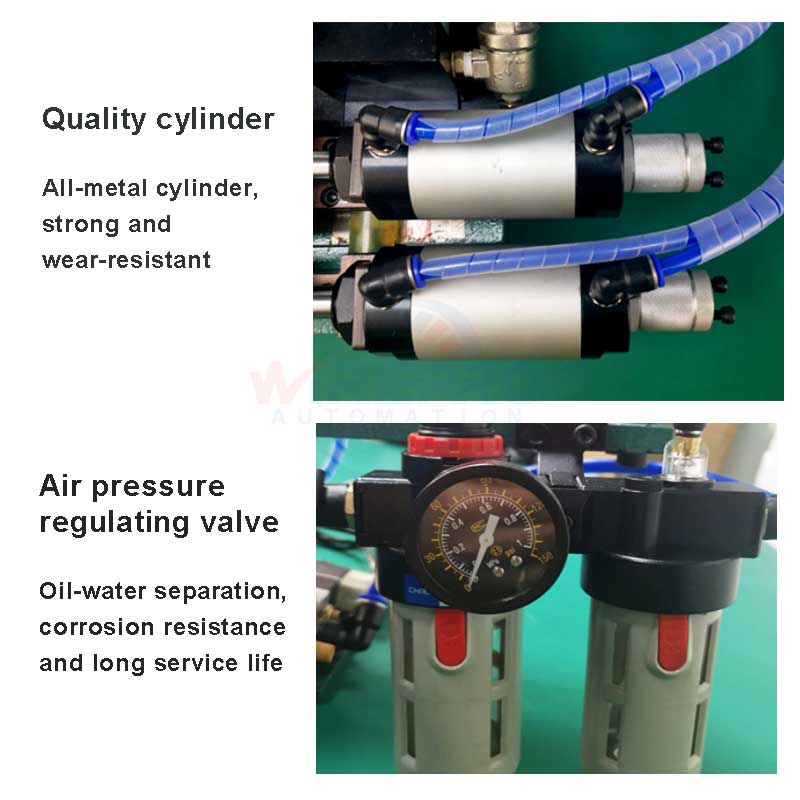

- Double-Acting Cylinder: The double-acting pneumatic cylinder eliminates the need for a return spring, reducing spring-related failure and supporting stable reciprocating motion.
- Lubricated Cylinder Structure: Regular oil lubrication reduces internal cylinder wear and helps extend service life.
- Pneumatic Control: The pneumatic control system provides responsive operation and reduces operator effort during daily production.

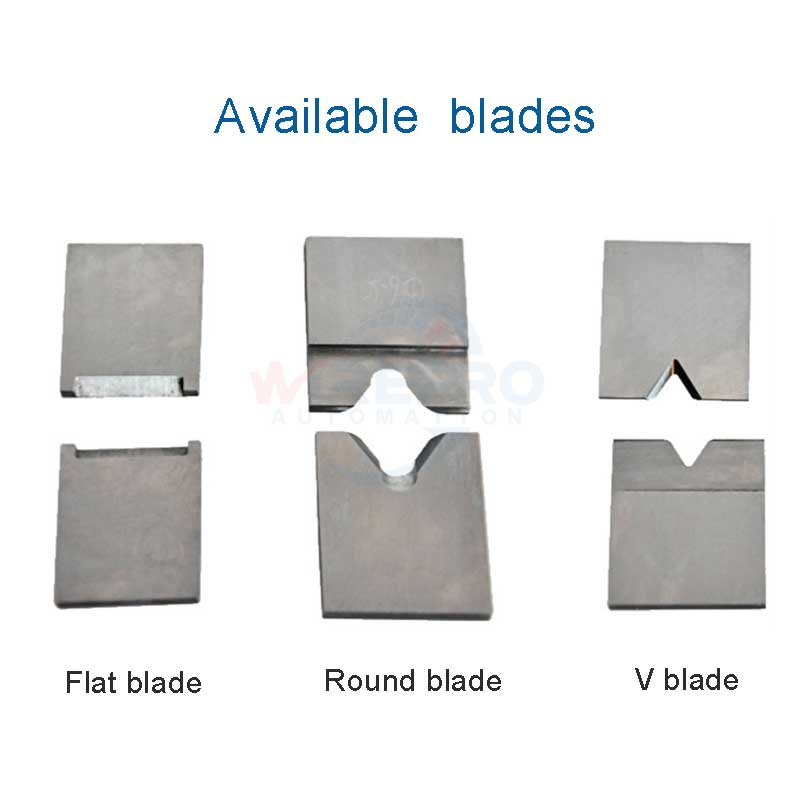

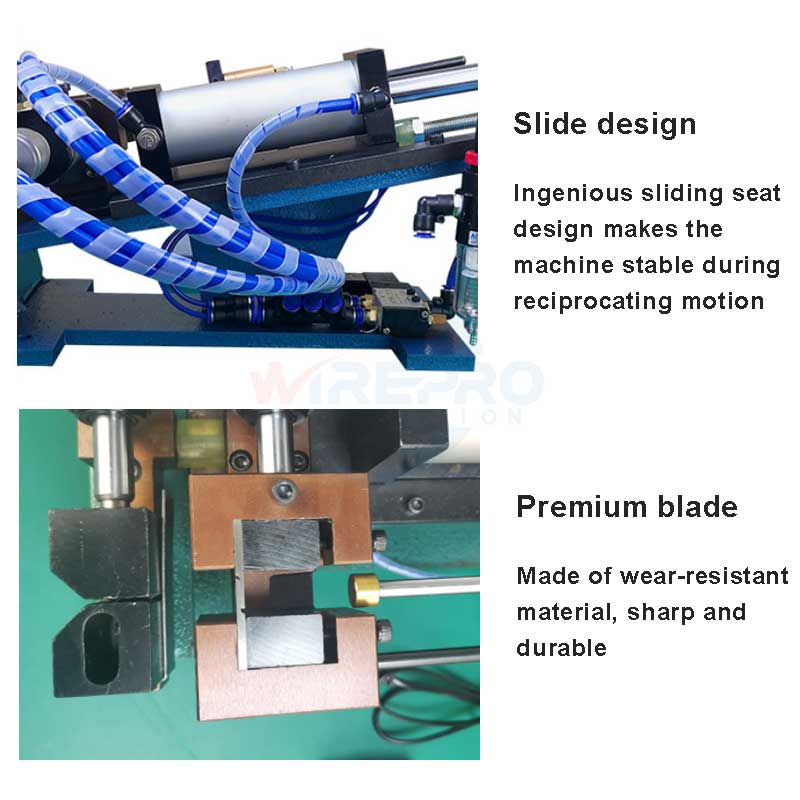

- Replaceable Blade Sets: Blades can be changed to accommodate different wire diameters and insulation materials.
- Mechanical Stripping-Length Adjustment: Stripping length is adjusted mechanically. Operators need to measure and calibrate the wire stop rod during setup or product changeover.
Technical Data
| Model | SP-305 | SP-310 | SP-315 |
| Available Wire Dia | Max 7 mm | Max 15 mm | Max 20 mm |
| Stripping Length | Max 50 mm | Max 100 mm | Max 150 mm |
| Stroke | 50 mm | 100 mm | 150 mm |
| Air Connection | 0.3–0.5 MPa | 0.5–0.75 MPa | 0.6–0.8 MPa |
| Power Supply | 110/220 VAC, 50/60 Hz | ||
| Weight | 20 kg | 25 kg | 30 kg |

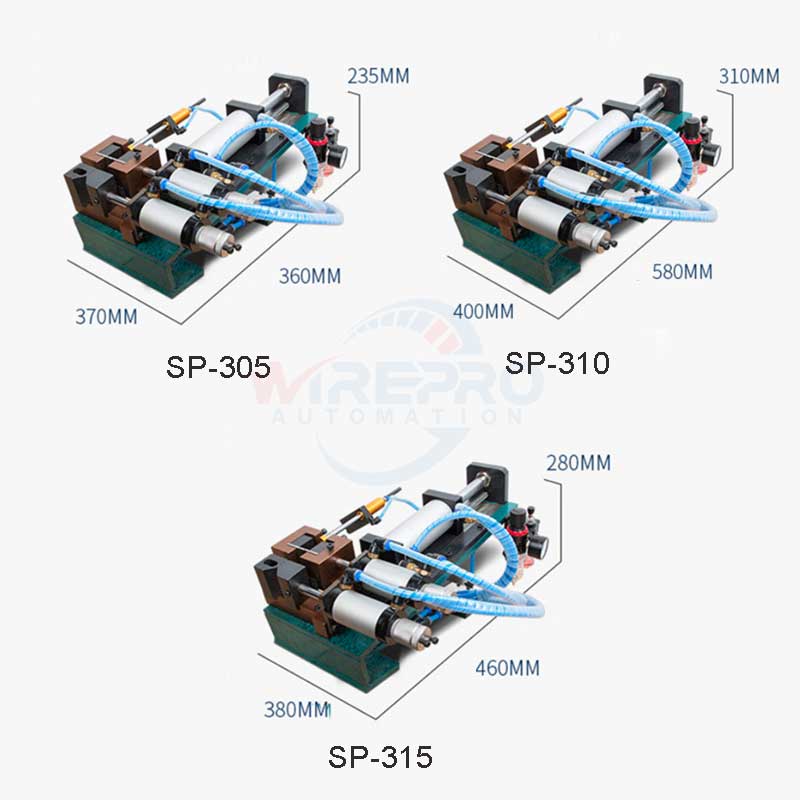

| Dimensions | 40 × 30 × 27 cm | 48 × 33 × 28 cm | 60 × 42 × 36 cm |
Application
The series machines are designed for stripping big-size cable.
