Model: CB-F01
This multifunctional cutting machine is used to cut for wide tapes, flat soft tubes, hose, and heat shrink tube, and so on.

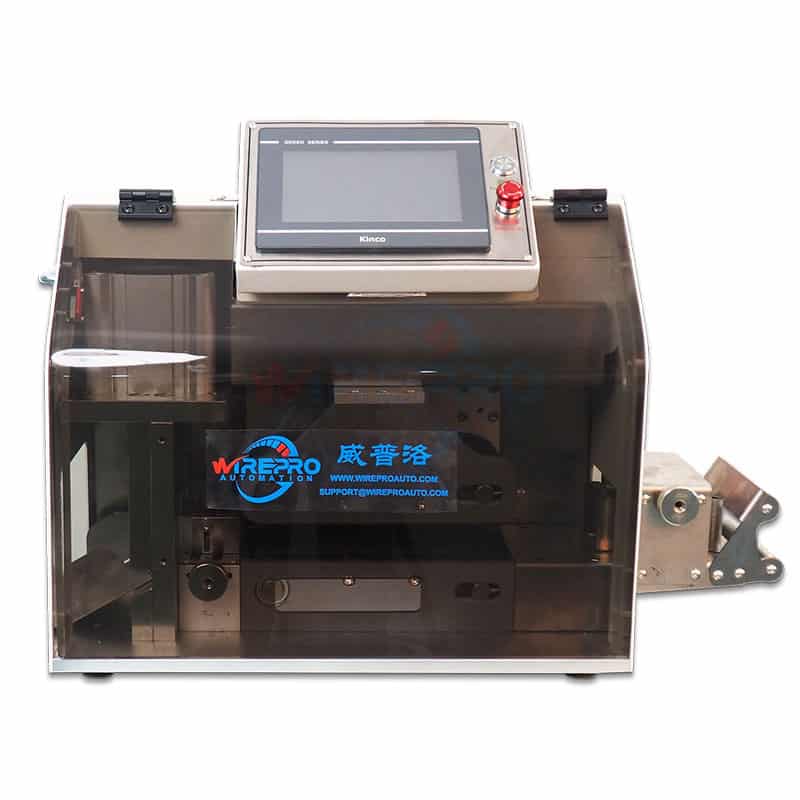

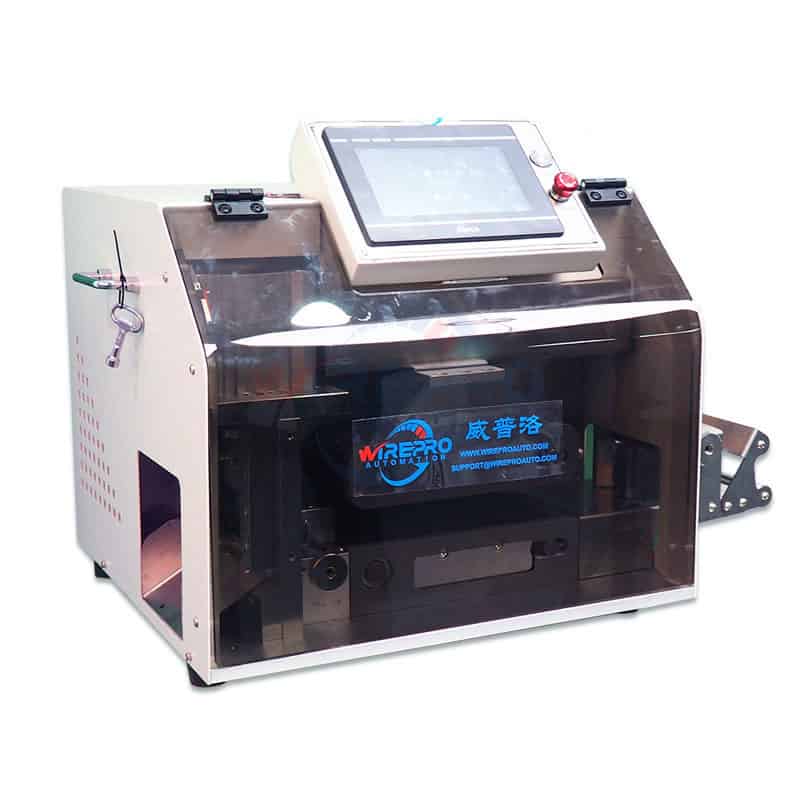

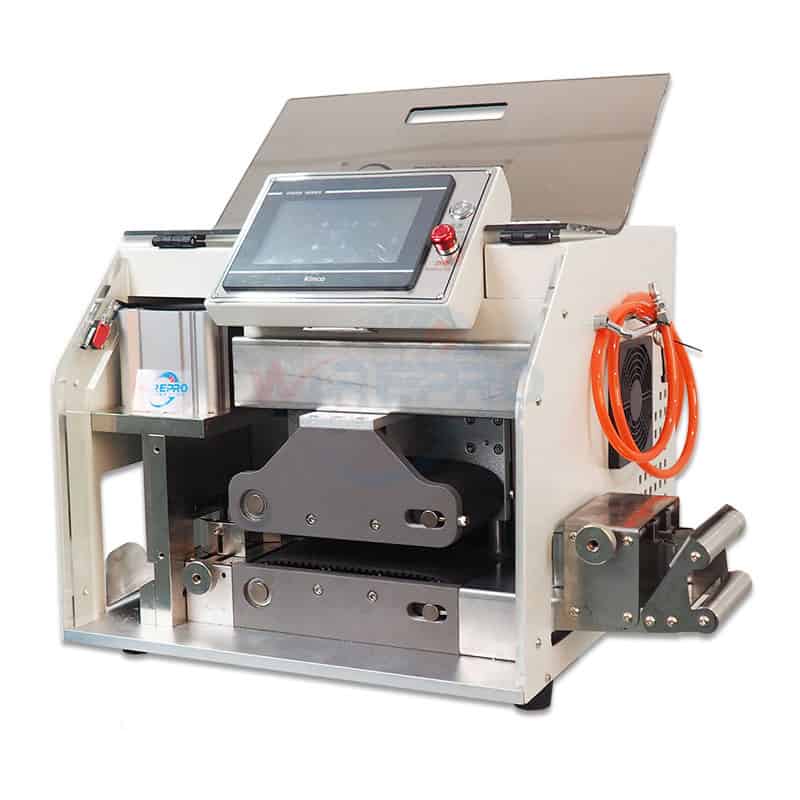

CB-F01 Multifunction thick belt flat cable cutting machine
Description
The CB-F01 is a multifunction cutting machine for flat materials, wide tapes, flat soft tubes, hoses, and heat-shrink tubing. It handles materials up to 25 mm high and 80 mm wide, with 5–9999 mm cutting lengths, touchscreen batch settings, and optional printer or payoff integration.
The CB-F01 is designed for cutting flat materials, including wide tapes, flat soft tubes, hoses, heat-shrink tubing, standard plastic materials, and certain flat materials containing fine metal. Material testing is recommended before processing metal-containing products.
The touchscreen control system allows operators to set cutting length, quantity, and production parameters. The group cutting function supports different cutting lengths and quantities within one group program. Belt feeding helps prevent surface indentation, while the safety guard improves operator protection. The machine can also be integrated with an inkjet printer, payoff stand, or other auxiliary equipment.
Key Features:
- Touchscreen Parameter Setting: Cutting length, quantity, and production parameters can be set directly on the touchscreen.
- Group Cutting Function: Supports different cutting lengths and quantities within one group program.

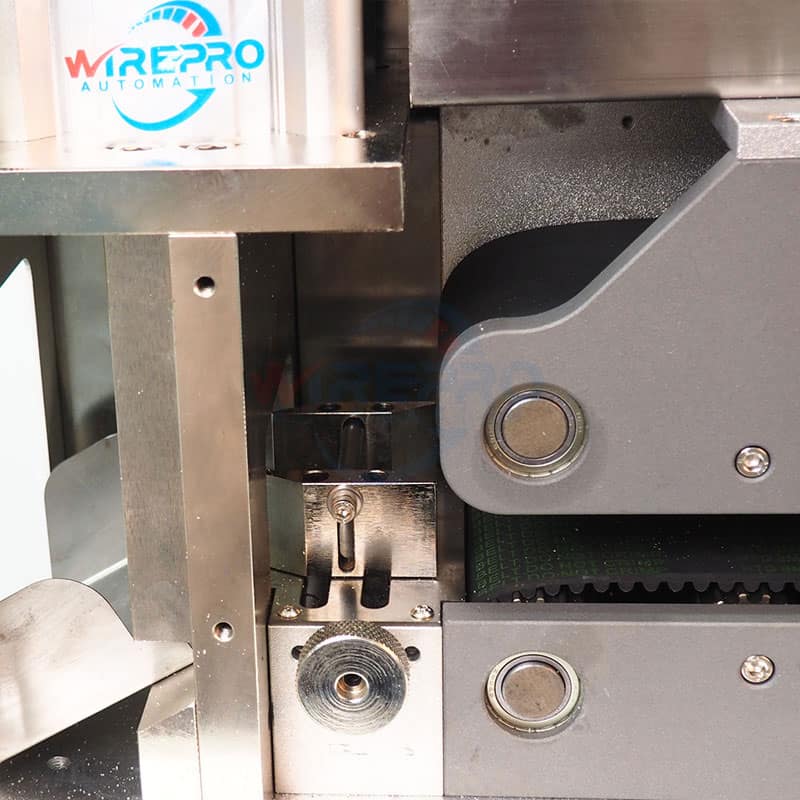

- Belt Feeding System: Feeds flat materials smoothly without causing surface indentation.
- Flat Material Compatibility: Suitable for wide tapes, flat soft tubes, hoses, heat-shrink tubing, standard plastics, and certain materials containing fine metal.
- Safety Guard: The protective cover helps improve operator safety during cutting.
- Auxiliary Equipment Integration: Can be connected with an inkjet printer, payoff stand, or other upstream and downstream equipment.
- Flexible Cutting Range: Supports cutting lengths from 5 mm to 9999 mm and a cutting speed of 10–60 pcs/min.
CB-F01 thick materials cutting machine video:
Technical Data
| Model | CB-F01 |
| Available Size | Height < 25 mm, Width < 80 mm |
| Cutting Length | 5 – 9999 mm |
| Cutting Speed | 10 – 60 pcs/min |
| Power | 1000 W |
| Power Supply | 220/110 V, 50/60 Hz |
| Dimensions | 56 × 68 × 62 cm |
| Weight | 86 kg |

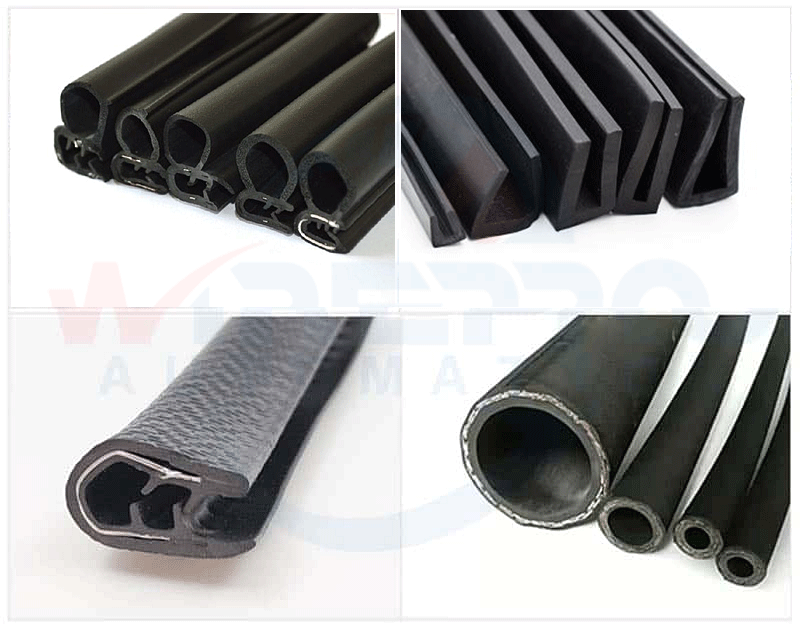

Application
wide tapes, flat soft tubes, hose, and heat shrink tube, wire and cable and so on.
What is the CB-F01 flat material cutting machine used for?
The CB-F01 is a multifunction cutting machine for flat materials such as wide tapes, flat soft tubes, hoses, and heat-shrink tubing. It cuts materials up to 80 mm wide and 25 mm high to lengths from 5 mm to 9999 mm. Group cutting programs combine different lengths in one job.
What materials can the CB-F01 cut?
The machine cuts wide tapes, flat soft tubes, hoses, heat-shrink tubing, standard plastic materials, and certain flat materials containing fine metal. For metal-containing products, sample testing is recommended before production. Wide tape and hose products are typical applications. Metal-containing products need prior testing.
How does group cutting work?
The group cutting function lets one program combine different cutting lengths and quantities. The machine runs through the group sequence automatically, which suits kits that need several tube or tape lengths in defined counts. The touchscreen displays progress through the group sequence.

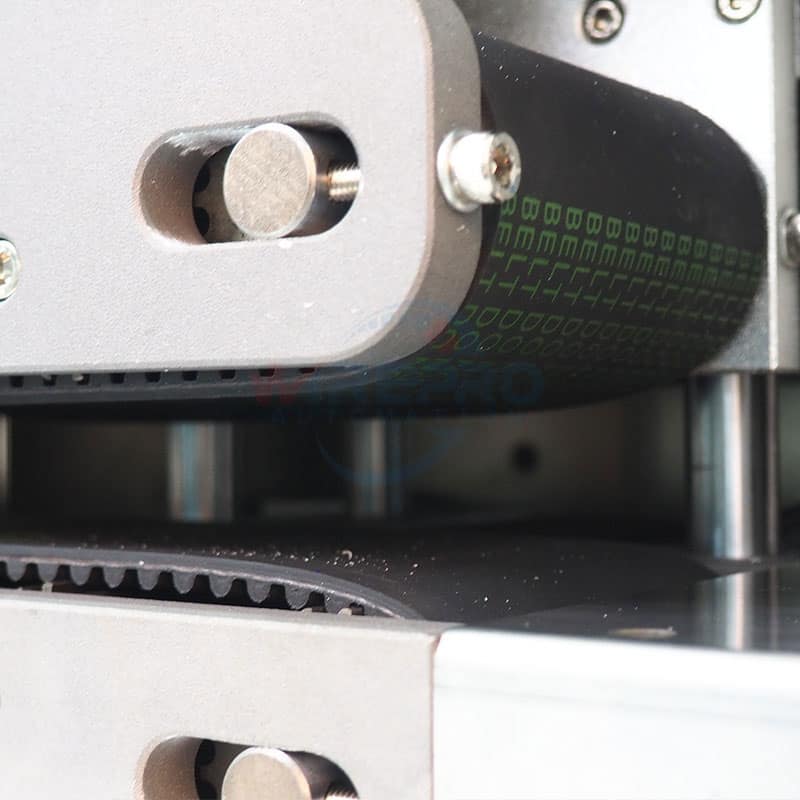

Why use belt feeding for flat materials?
Belt feeding distributes pressure over a wider contact area than pinch rollers. Soft flat materials like heat-shrink tubing feed smoothly without surface indentation, keeping the cut pieces free of press marks. Feeding stays stable even at higher speeds. Soft surfaces stay free of marks.
What is the cutting speed and length range?
Cutting length sets from 5 mm to 9999 mm, and cutting speed reaches 10–60 pieces per minute depending on length. Parameters are entered directly on the touchscreen controller. A safety guard protects the operator during cutting. Parameters are entered on the touchscreen.
Can the CB-F01 connect with other equipment?
Yes. The machine can be integrated with an inkjet printer for marking, a payoff stand for material feeding, or other upstream and downstream auxiliary equipment to build a semi-automatic cutting station. Integration options are configured when ordering the machine. This builds a semi-automatic cutting station.
What utilities and support are provided?
The machine runs on 220/110 V, 50/60 Hz at 1000 W, weighs 86 kg, and measures 56 × 68 × 62 cm. It is CE certified with a one-year warranty, remote support, and free sample testing before purchase. Spare blades and belts are available as wearing parts.
