Model: RD-MT3

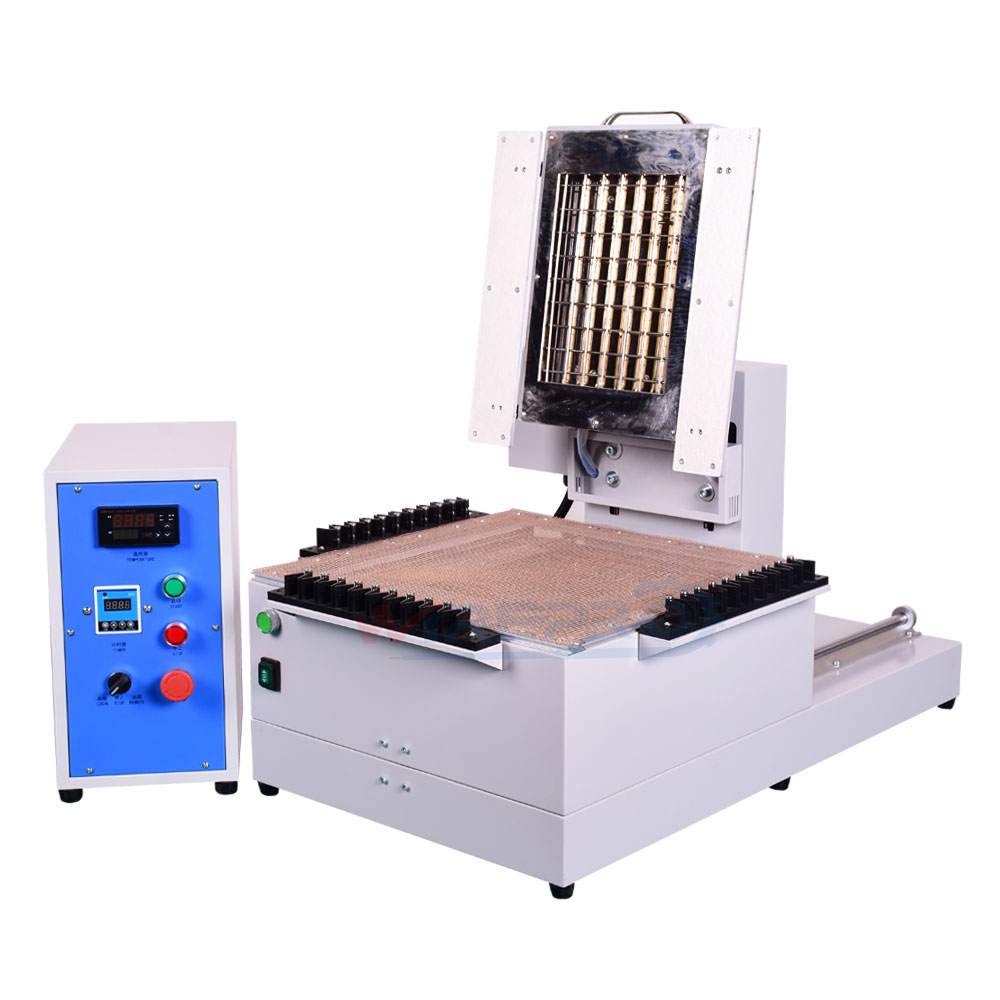

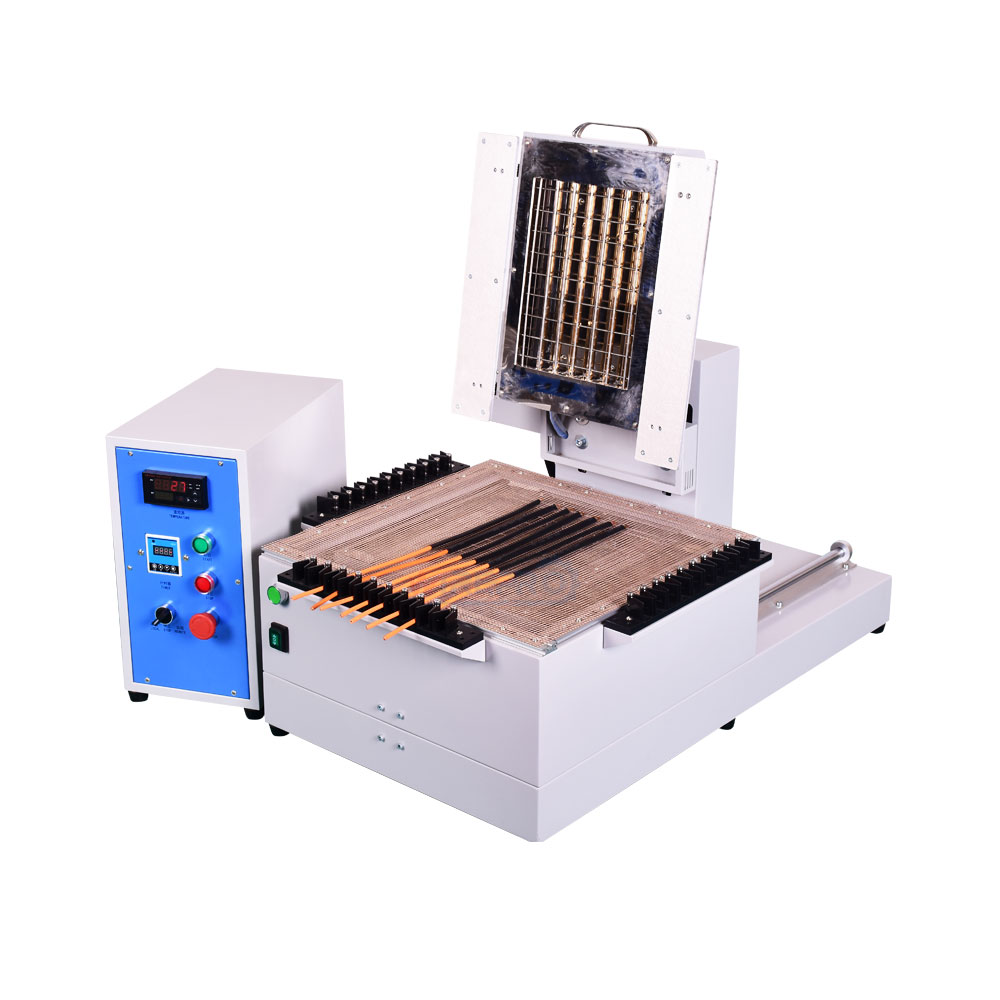

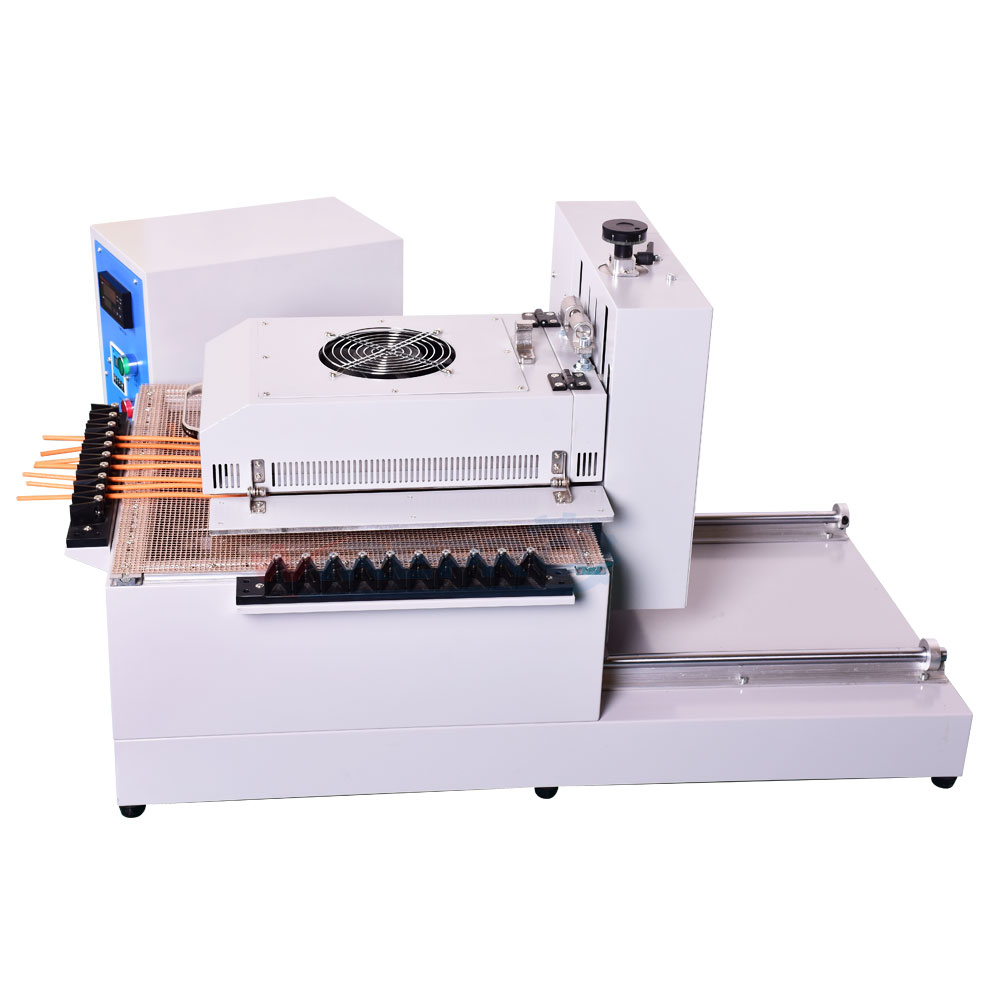

The RD-MT3 is an infrared heat shrink machine with a moving upper heating module.
RD-MT3 Moving upper heating module infrared heat shrink machine
Description
The RD-MT3 is an infrared heat shrink machine with a moving upper heating module. The product is placed on the material platform, and when the start button is pressed, the heater automatically moves above the product. After heating is complete, it automatically returns to its original position. The heating time and stopping time can be freely adjusted according to actual needs.
This machine is suitable for heat shrinking tubing in wire harness processing enterprises. The operating time, working time, and heating zone width can be adjusted according to production process requirements. It can operate continuously for 24 hours without interruption.
Technical Data
| Model | RD-MT3 |
| Heating shrinkable tube diameter | < 40mm |
| Heating Ares | L180mm * W 260mm |
| Heating Temperature | < 260℃ |
| Heating tube name | Infrared radiation tube |
| Power supply | 220V |
| Power | <300W*12 |
| Moving Part | Move stock 350mm; speed 0~100mm/s adjustable |
| Weight | Gross 62kgs |
Application
