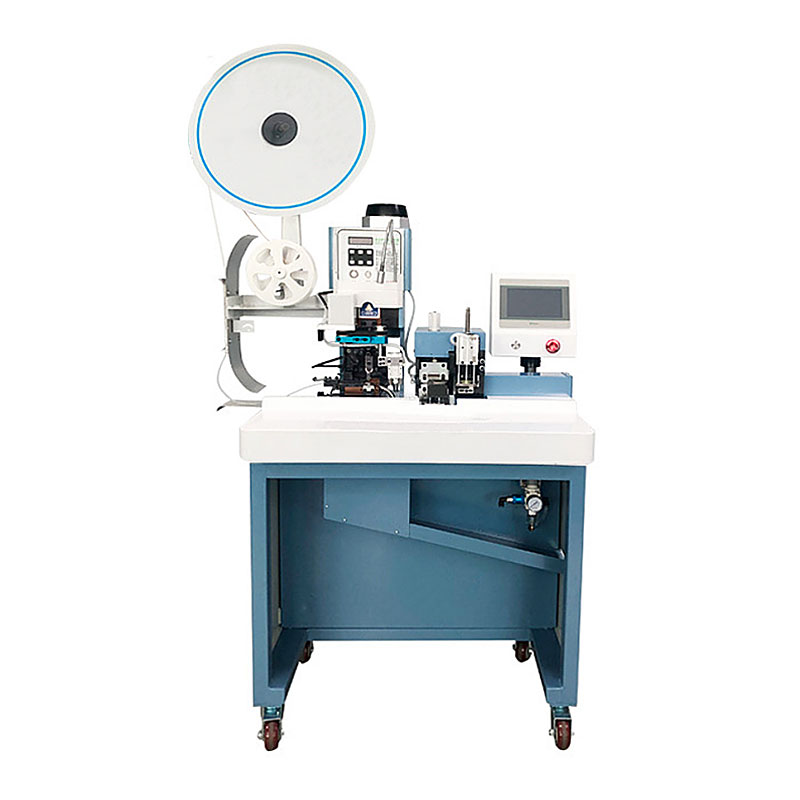

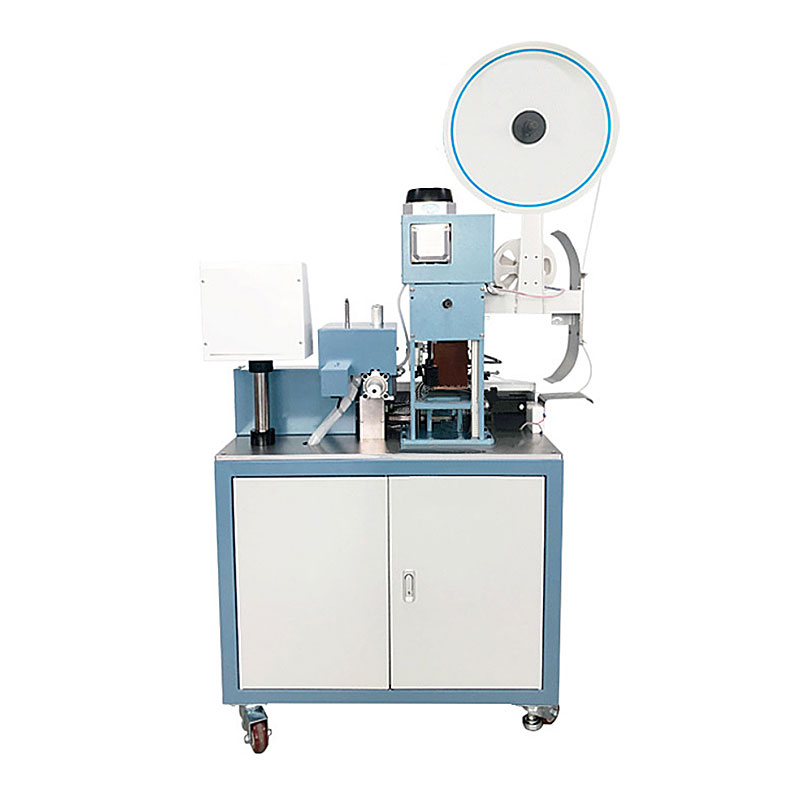

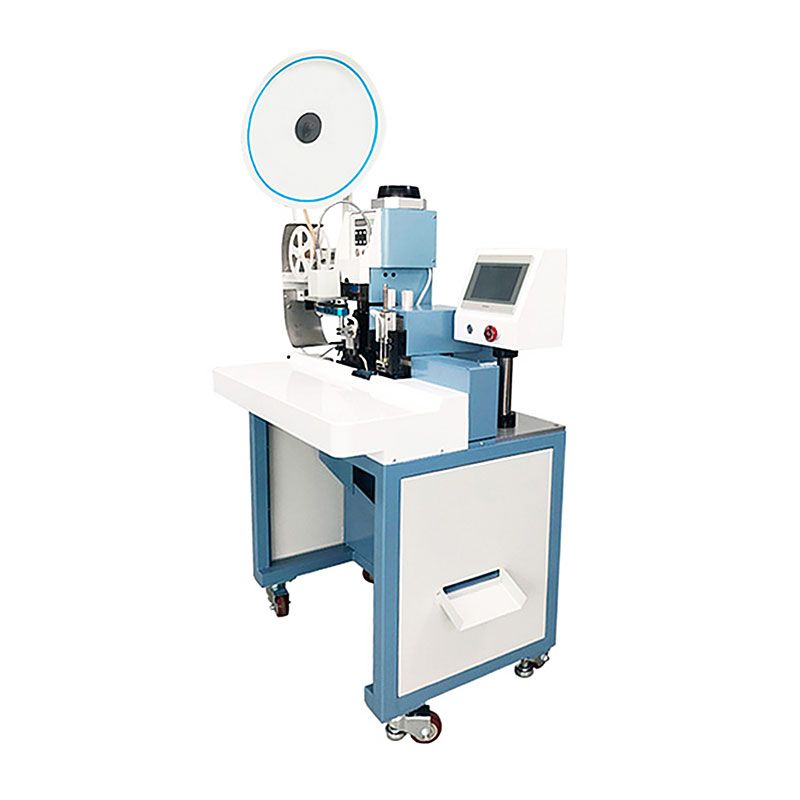

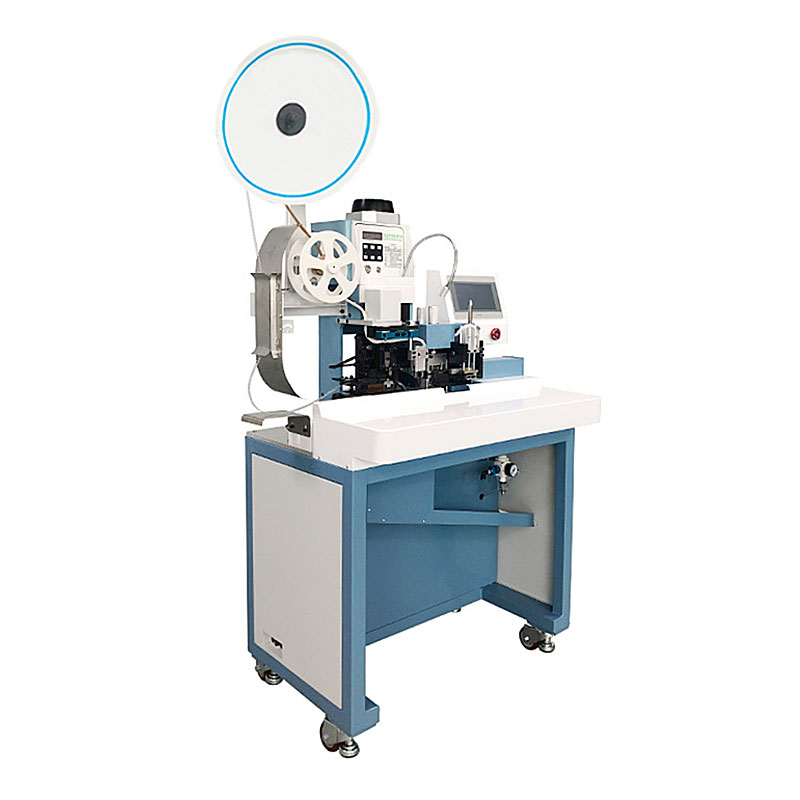

TS-M02 2-16 core multi core cable stripping and terminal crimping machine

The multi-core sheathed cable stripping and ferrules crimping machine is specially designed for processing the core wires of multi-conductor sheathed cable.
The outside jacket should be pre-stripped before using this machine, and the operator only needs to put the cable in the working position, then the machine will strip the inner wire and crimp terminal automatically. It greatly improves the multi-core sheathed cable processing efficiency.

1. This machine is specially designed for processing the core wires of multi-conductor sheathed cable.
2. Stripping and crimping the terminal can be completed at one time, which is convenient and quick. It adopts frequency conversion control to realize soft start, soft stop, and no mechanical loss.
3. Independent stripping, riveting terminal operation, automatic and manual operation, and each action time can be adjusted according to the specifications of the wire and terminal.

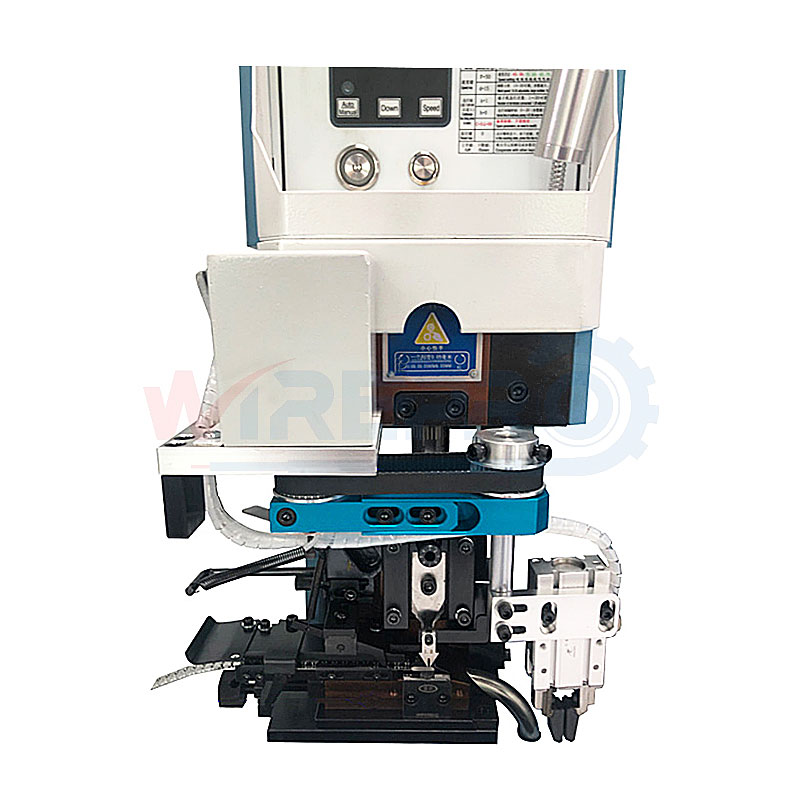

4. The cassette die and stripping parts are independent, the card die is easy to replace, the stripping depth is adjustable, and the production adaptability is strong.

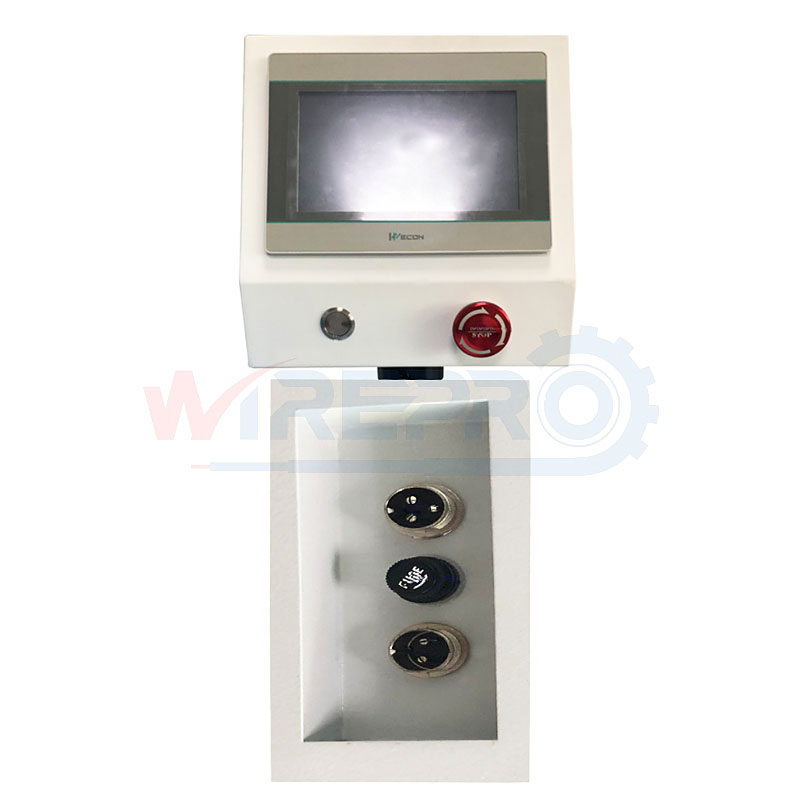

5. The control system adopts PLC and color touch screens, the moving parts are driven by servo motors, simple operation, and high processing accuracy.
6. Proprietary dander recovery device, clean operation.
