Model: HT-C05, HT-C10
HT-E10 is a high-precision instrument for the wire harness pull-off test of the wire harness manufacturing industry.

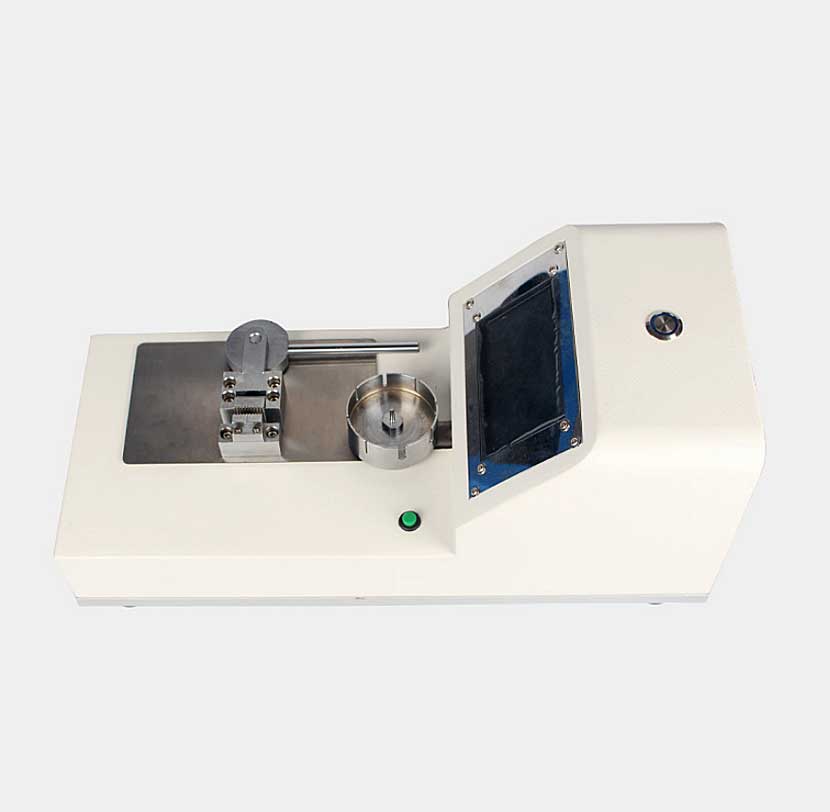

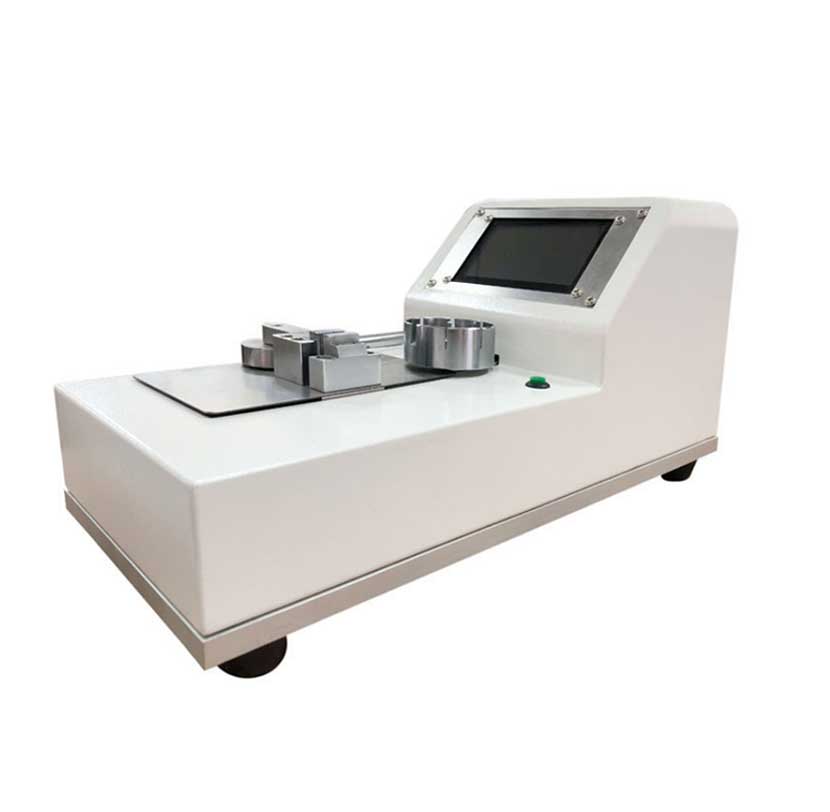

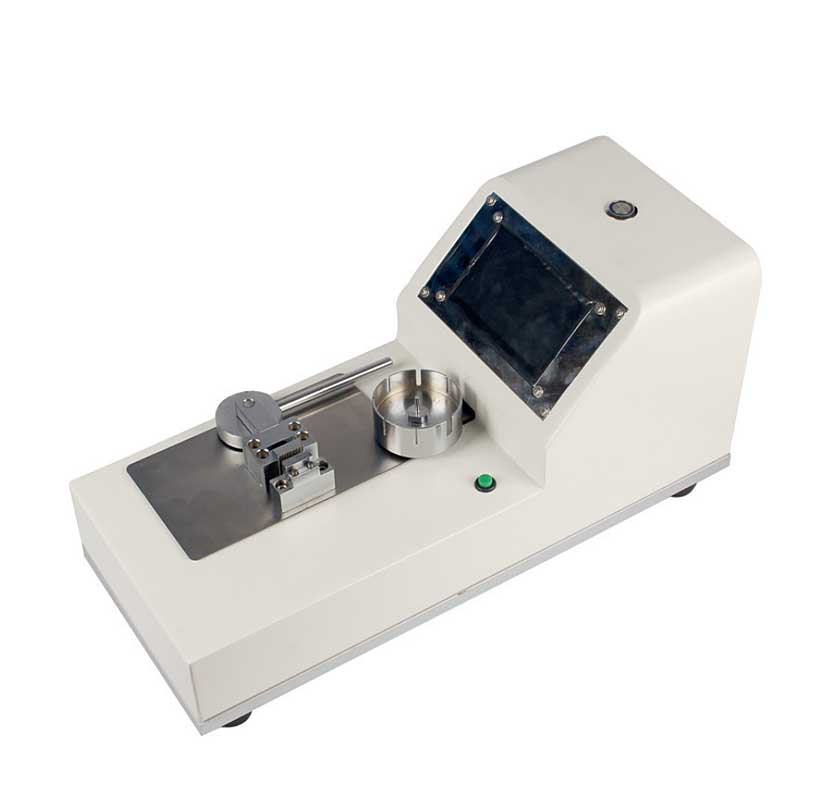

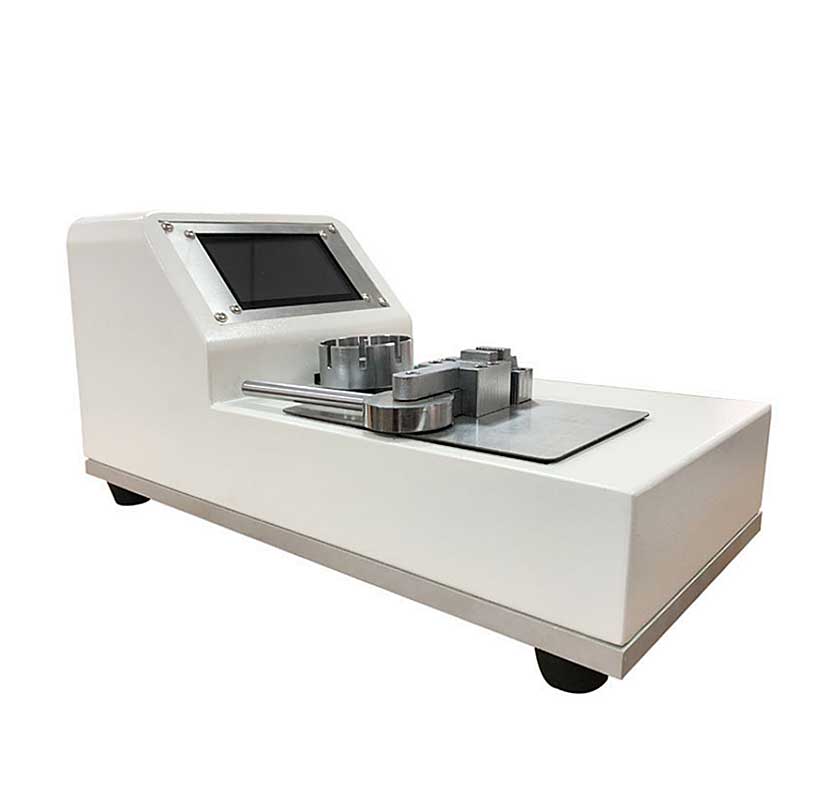

HT-C05 HT-C10 Electric wire and terminal tensile forces testing machine
Descrizione
Features:
1. Motor-driven, color touch screen operation, automatic measurement and display of the tension value, simple operation, and accurate measurement.
2. It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensile tests.
3. With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real-time.
4. The data center can store 16 programs to meet the testing requirements of commonly used wires.
5. The chuck can accommodate various sizes of wires and terminals, and special wire specifications can be customized.
Technical Data
| Model | HT-C05 | HT-C10 |
| Force Range | 0~500N | 0~1000N |
| Force Accuracy | ±0.04N | |
| Force Unit | Kilogram(Kg) / Newton(N) | |
| Power Supply | 220V | |
| Power | 100W | |
| Test speed | 10-800mm/min | |
| Weight | 10kg | |
| Dimensions | 43×18×21cm | |
Application
