Model: SU-BA16 SU-BA25
It is designed for 3d fully automatic cutting & stripping & bending.

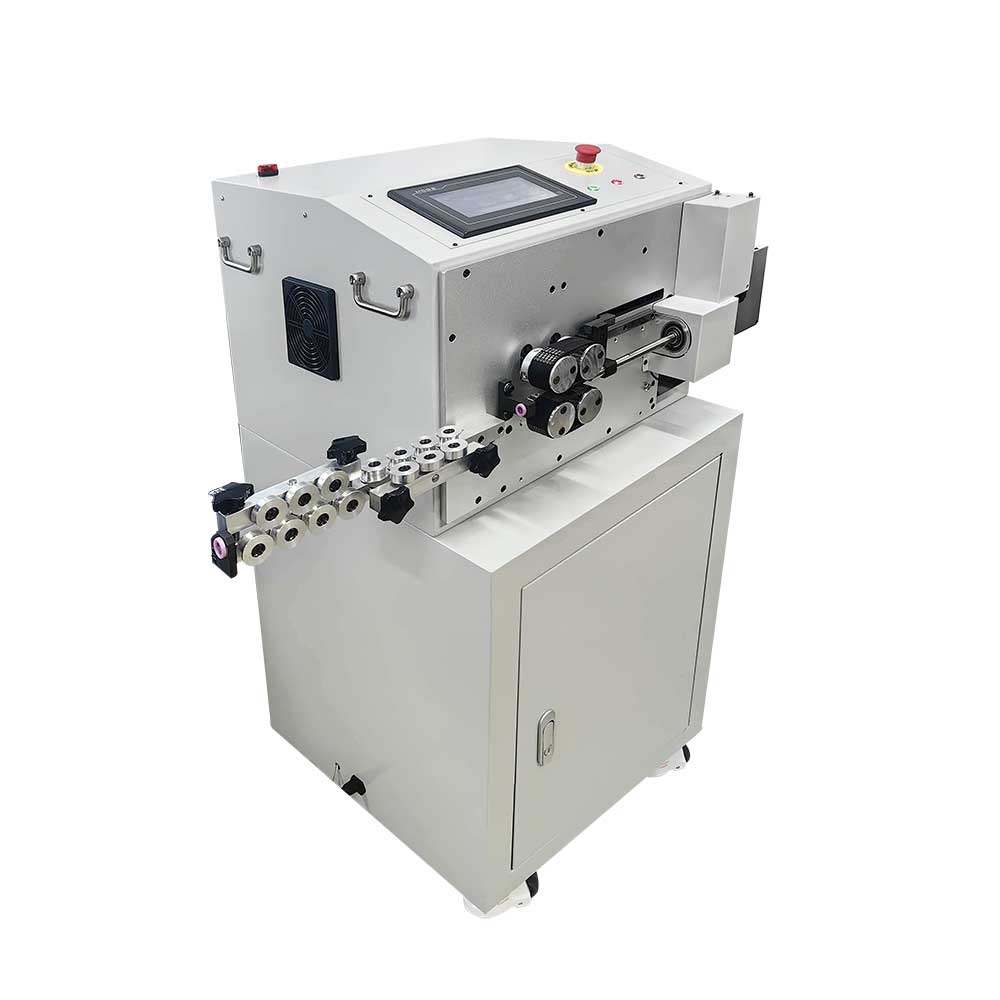

SU-BA16 SU-BA25 big solid cable stripping and 3d cable bending machine
Descrizione
This machine is used for cutting, stripping, and bending hard wires, supports 3D wire, and can be custom based on your wire size.
Suitable for the jumper wire of the electric control cabinet, bending wire of the meter box, forward and reverse jumper wire of the contactor, table box, watch cabinet, and other hard wires that need to be bent and stripped, etc.
1. Support almost arbitrarily adjusted the angle and bending length
2. Excellent bending consistency, and eliminating manual operation error
3. Automatic stripping and bending, improve work efficiency
4. Equip with Shangyin linear slide, precision pneumatic pressure roller, more precision, more complete functions.
Video:
Technical Data
| Model | SU-BA16 | SU-BA25 |
| Conductor Cross-Section | 4-16 sqmm | 10-25 sqmm |
| Stripping Length | Head ≤ 30mm; Tail ≤ 30mm (can custom) | Head ≤ 30mm; Tail ≤ 30mm (can custom) |
| Cutting Length | 0.1-99999.9mm | 0.1-99999.9mm |
| Conduit Diameter | Φ9mm | Φ10mm |
| Tolerances | Cutting Length ±2mm, Bending angle ±2°Cutting Length ±2mm, Bending angle ±2° | |
| Bend Shape/Angle | 3D, any angle (if the wire does not interfere). Max 10 sections. | |
| Drive Method | 4-wheel drive, using closed-loop high-speed DC motor | |
| Display Screen | Chinese / English touchscreen | |
| Program Storage | Max 500 | |
| Production Rate | 50-300 pcs/h, based on the final shape | |
| Power Supply | 110/220VAC, 50/60Hz | |
| Power | 600W | 700W |
| Dimensions | 70*66*120cm | 70*66*120cm |
| Weight | 95kgs | 100kgs |
Application
For 3d wire cutting stripping bending
