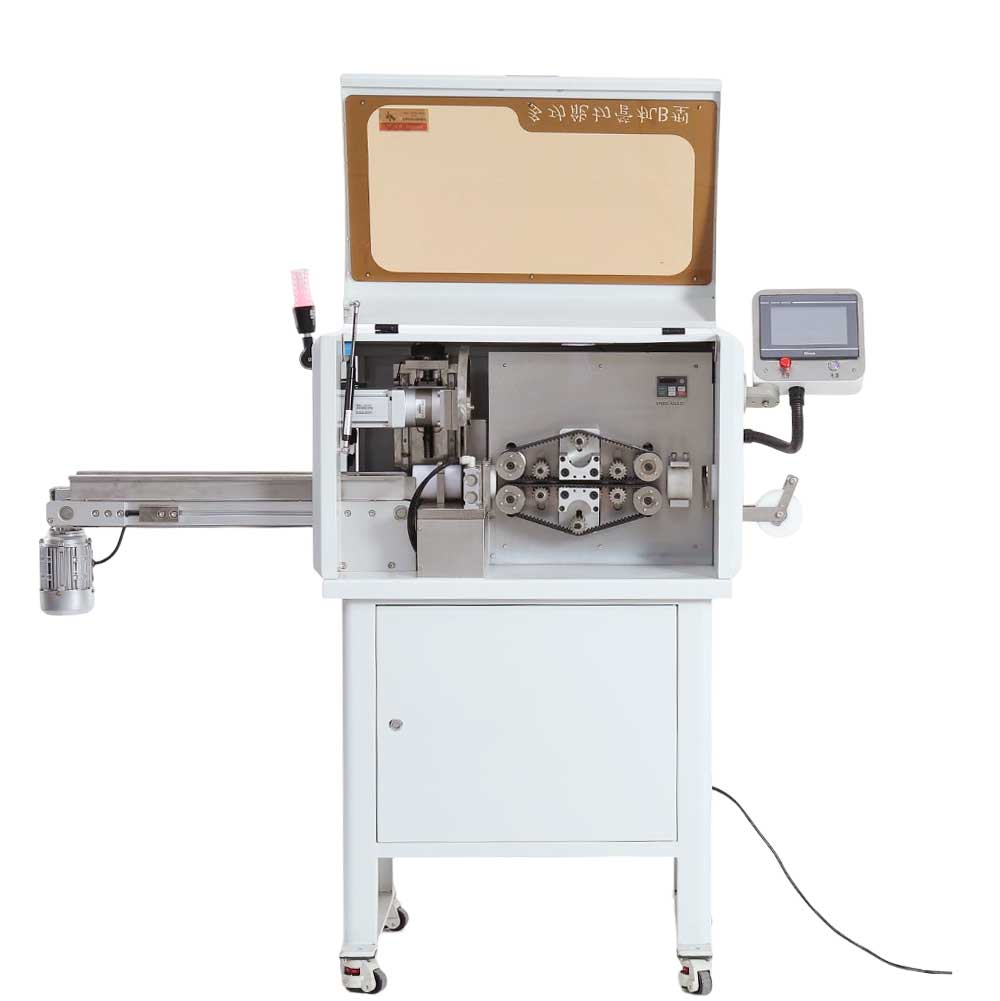

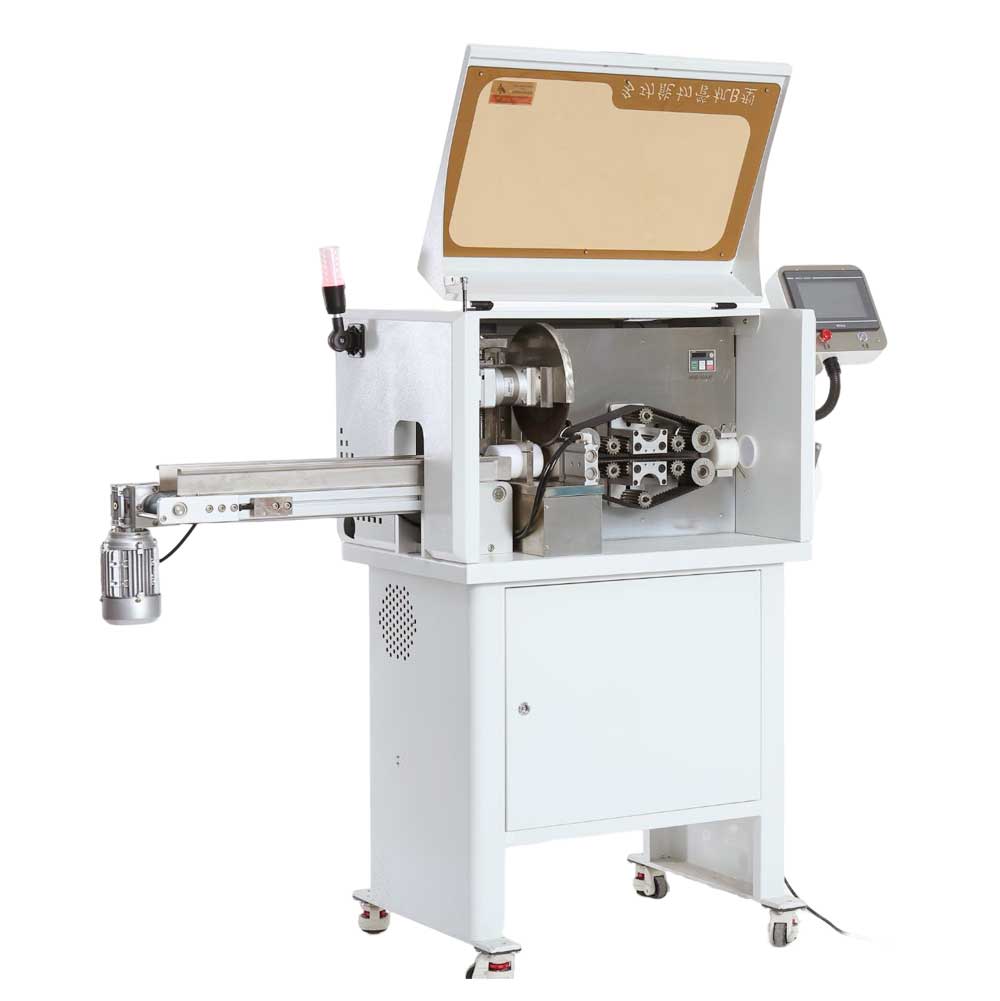

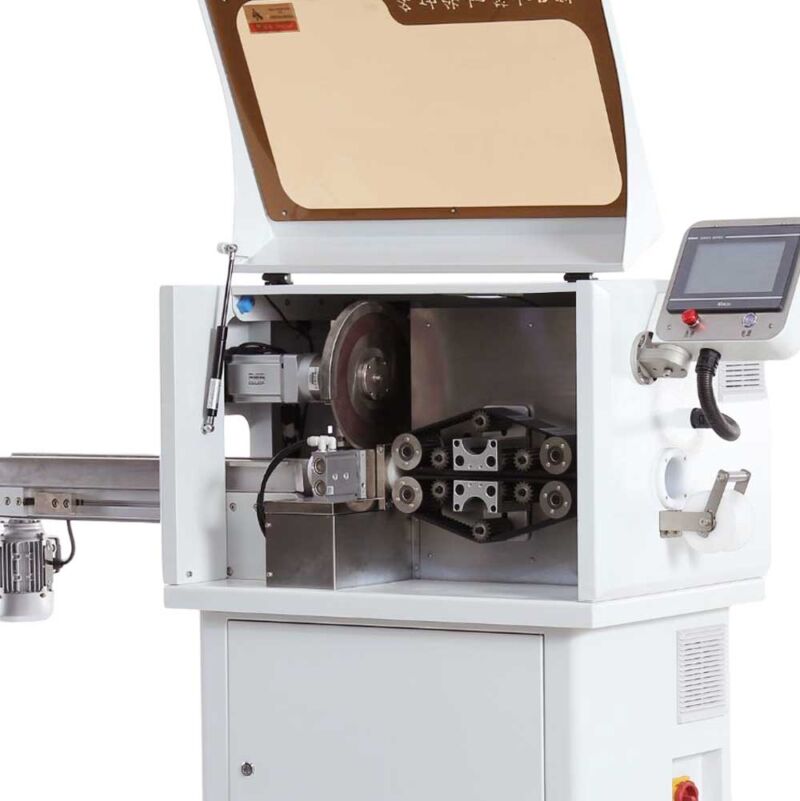

CB-M05-B Automatic thin wall metal bellows tube cutting machine

Name: CB-M05-B Automatic thin wall metal bellows tube cutting machine
SKU: CB-M05-B
Availability: InStock

Model: CB-M05-B

The CB-M05 is designed for thin metal corrugated tubes and other materials with thin steel.

COD: CB-M05-B Categoria: Taglio dei materiali Tag: Corrugated tube

The CB-M05 is designed for thin metal corrugated tubes and other materials with thin steel.

Feature:
1. Cylinder cutting, strong power
2. Special tool, wear-resistant and durable
3. Stepless feeding, high efficiency and stability.

Model	CB-M05A	CB-M05B
Materials	For thick material tube strip belt and so on	For thin metal tube and so one
Feature	Higher power and harder tools	Higher power and Rotating knife
Available Diameter	1-60mm	1-30mm (custom available Max 45mm)
Cutting Length	0.1-99999mm
Cutting Length tolerance	± (0.5mm + L*0.002)	± 0.5mm
Cutting Speed	20-60pcs/min
Power	220/110V
Air Connection	0.5-0.7Mp
Power Supply	1200W	2000W
Dimensions	10253130cm
Weight	250kg

CB-M05 Metal tube cutting machine:
