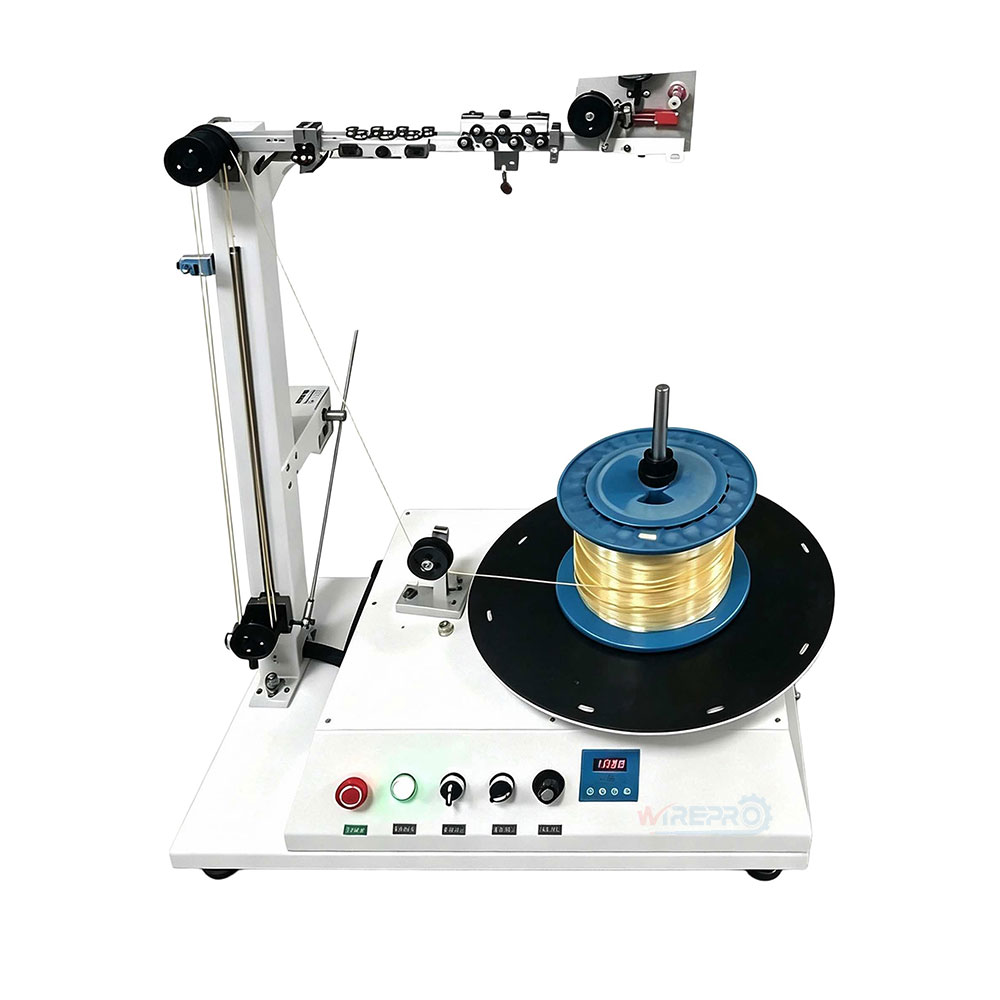

Model: PF-RS40 PF-S40
PF-RS40 PF-S40 Wire Coiler PreFeeder Cable Bundle Prefeeding Machine
Descripción
This PreFeeder is designed for a wide range of wire spool types, including normal wire, steel wire rope, electronic cable, ribbon cable, and twin wire. Featuring a vertical pay-off structure. It can be integrated with automatic terminal crimping machines, automatic computer wire cutting machines, automatic tube cutting machines, and automatic wire winding & bundling machines.
- This unit supports forward/reverse switching and free wire feeding.
- The wire is smoothly drawn from the top of the spool, effectively preventing twisting and knotting during unwinding.
- Equipped with a sensor, the unit enables automatic induction speed change for intelligent wire pre-feeding.
- A speed control button is also provided, allowing operators to set the maximum feeding speed according to the downstream machine’s requirements, ensuring smooth synchronization.
- Designed with cost-effectiveness and space efficiency, this compact wire feeder offers convenient operation
The equipment features two operating modes: wire can be fed directly from the reel, suitable for various types of wire coils; alternatively, it can be fed through a convenient guide pulley on the reel, suitable for spools.
PF-S40 for wire spool; PF-RS40 for wire coiler and wire spool.
Applicable wires: Braided wire, steel wire rope, iron wire, electronic wire, ribbon cable, double parallel wire, and various other wires are all applicable.
Datos técnicos
| Modelo | PF-S40 | PF-RS40 |
| Suitable Materials | Wire coiler | Wire coiler or Wire Spool |
| Suitable Wire Dia | 5–15 mm （Stranded flexible wire） | 1–4 mm（Stranded flexible wire） |
| Max Load Weight | 40 KG | 40 KG |
| Wire Roll OD | ≤ 550 mm (Customizable) | |
| Wire Roll Height | ≤ 250 mm | |
| Wire Roll ID | ≥ 115 mm (Internal shaft sleeve removable, then only need 35mm) | |
| Braking System | Variable frequency braking, 0.1 s buffer stop, resistance-free, smooth braking | |
| Sensing Device | Automatic induction speed change | |
| Voltage | AC 220V 50 Hz | |
| Rated Power | 750 W | |
| Dimensiones | 920 × 610 × 1020 mm | |
| Peso | 50 KG | |
Aplicación
Small size wire roll feeding.
